半监督节点分类

前言

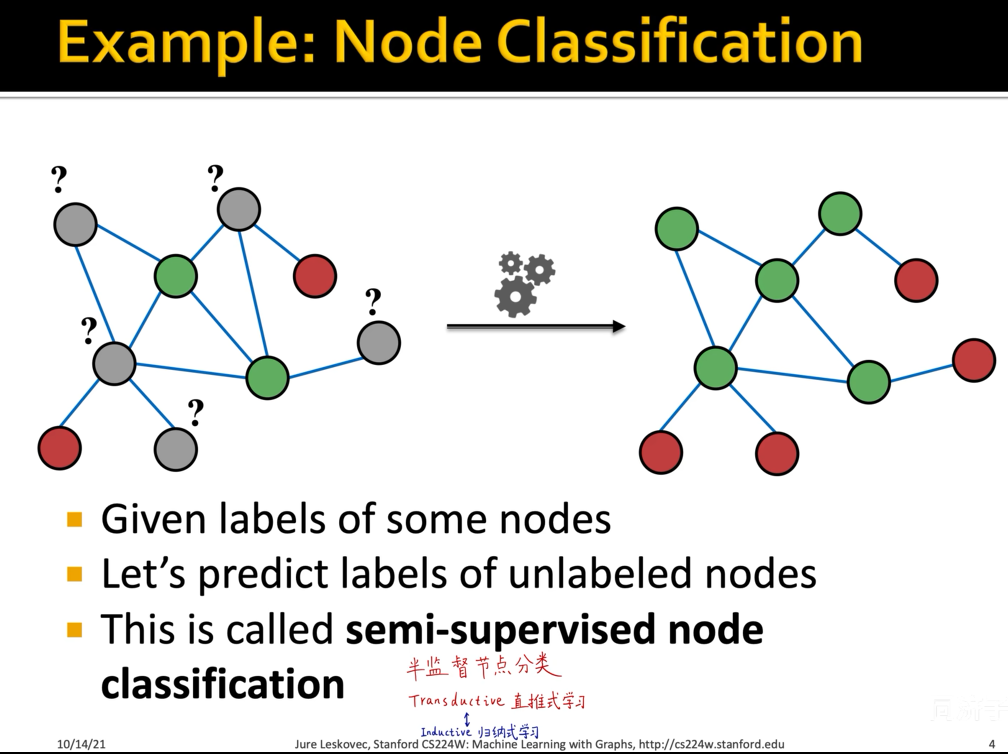

https://github.com/spiritysdx/images/blob/main/20231020/1.png?raw=true

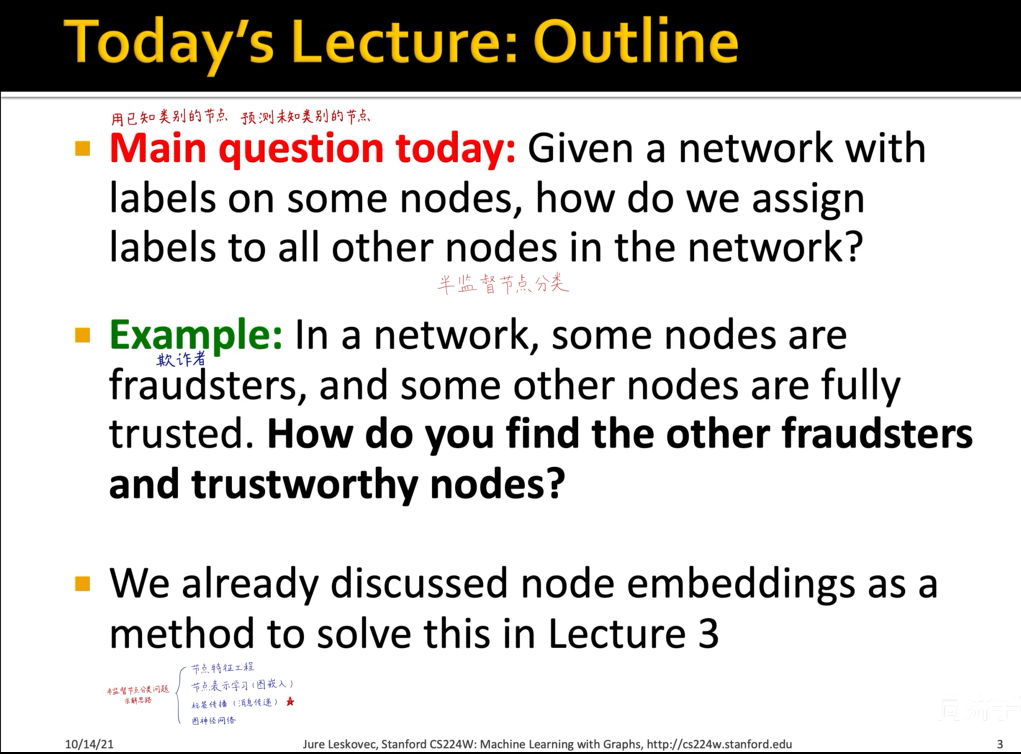

https://github.com/spiritysdx/images/blob/main/20231020/2.png?raw=true

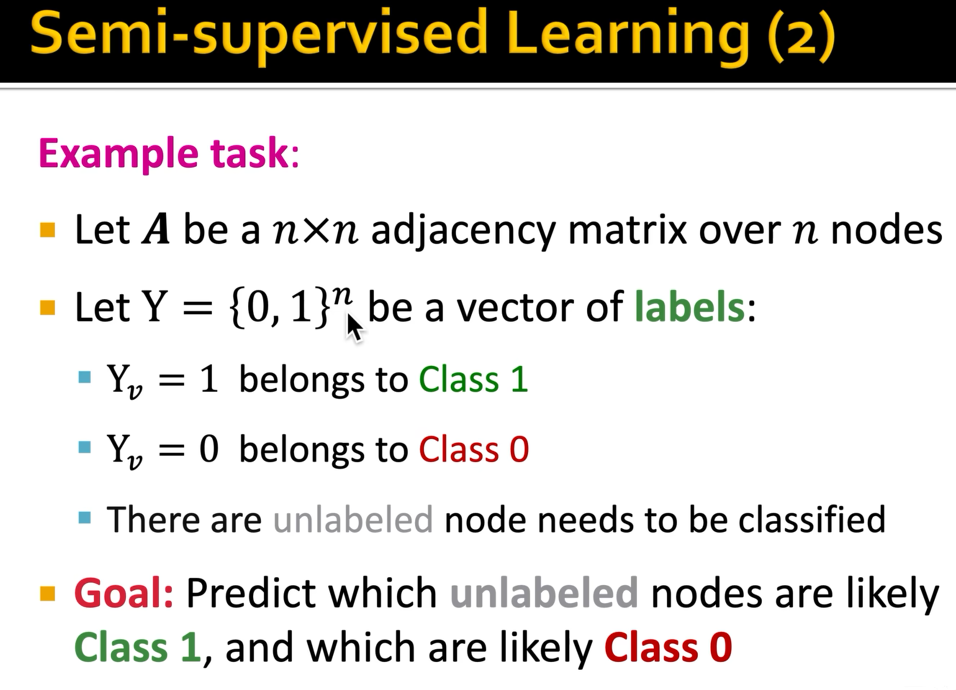

https://github.com/spiritysdx/images/blob/main/20231020/3.png?raw=true

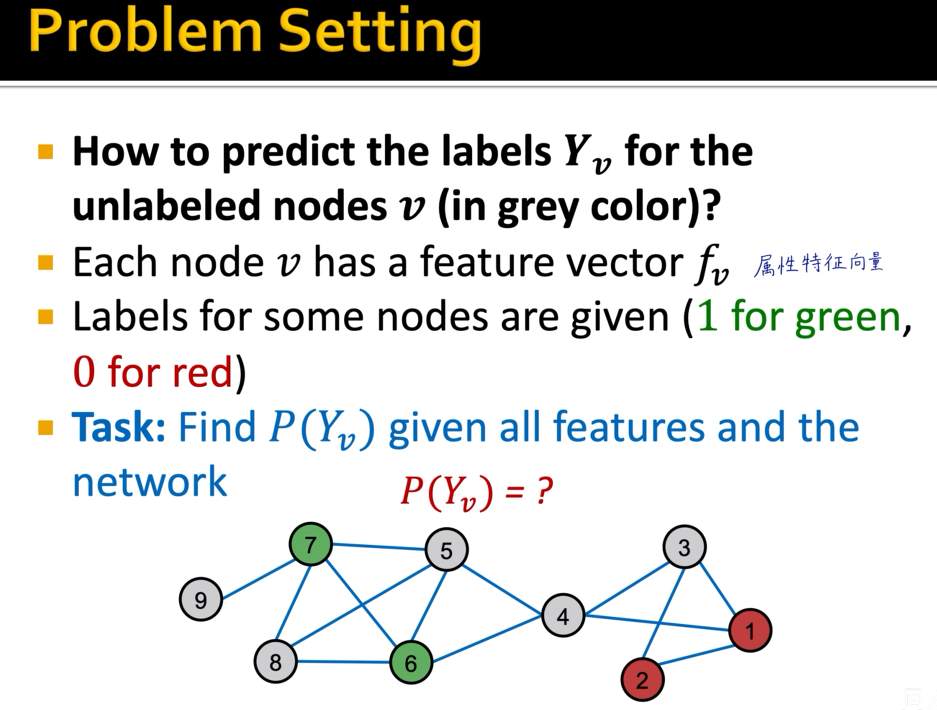

https://github.com/spiritysdx/images/blob/main/20231020/4.png?raw=true

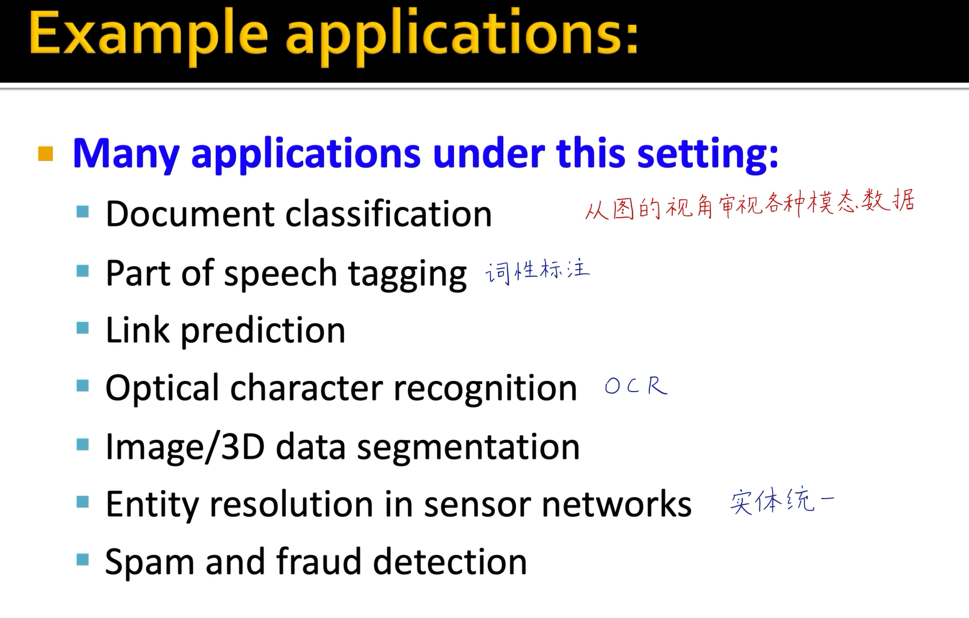

https://github.com/spiritysdx/images/blob/main/20231020/5.png?raw=true

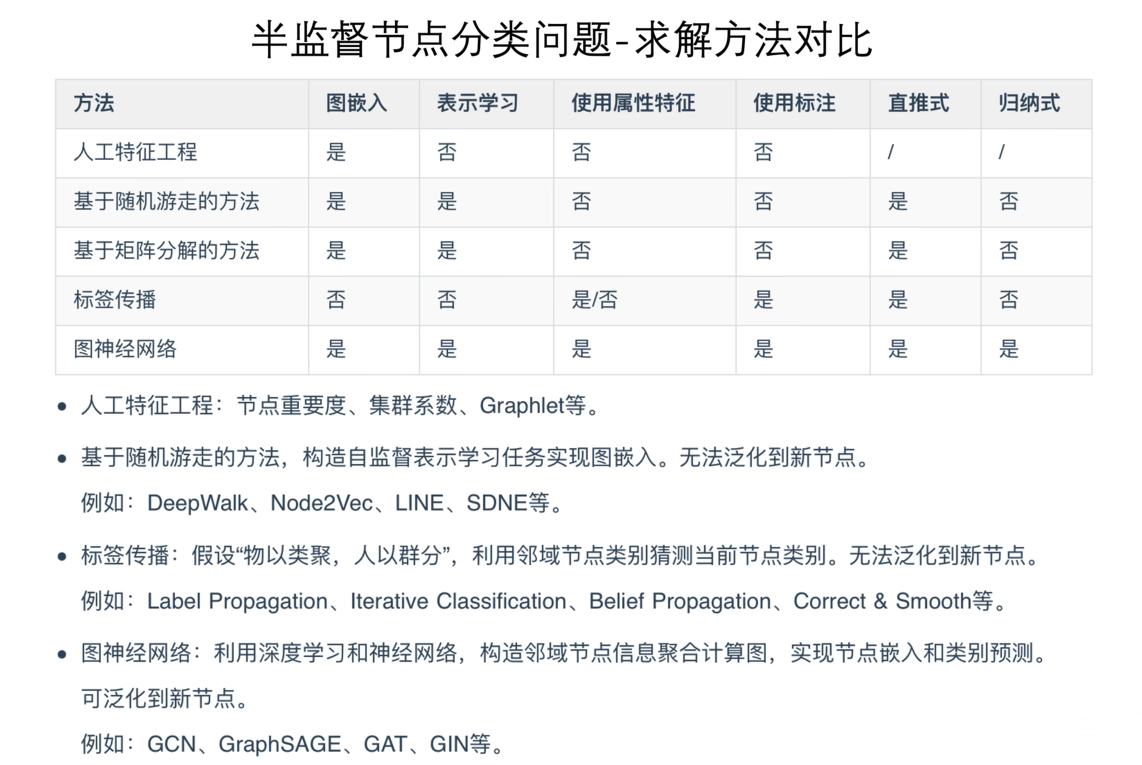

https://github.com/spiritysdx/images/blob/main/20231020/6.png?raw=true

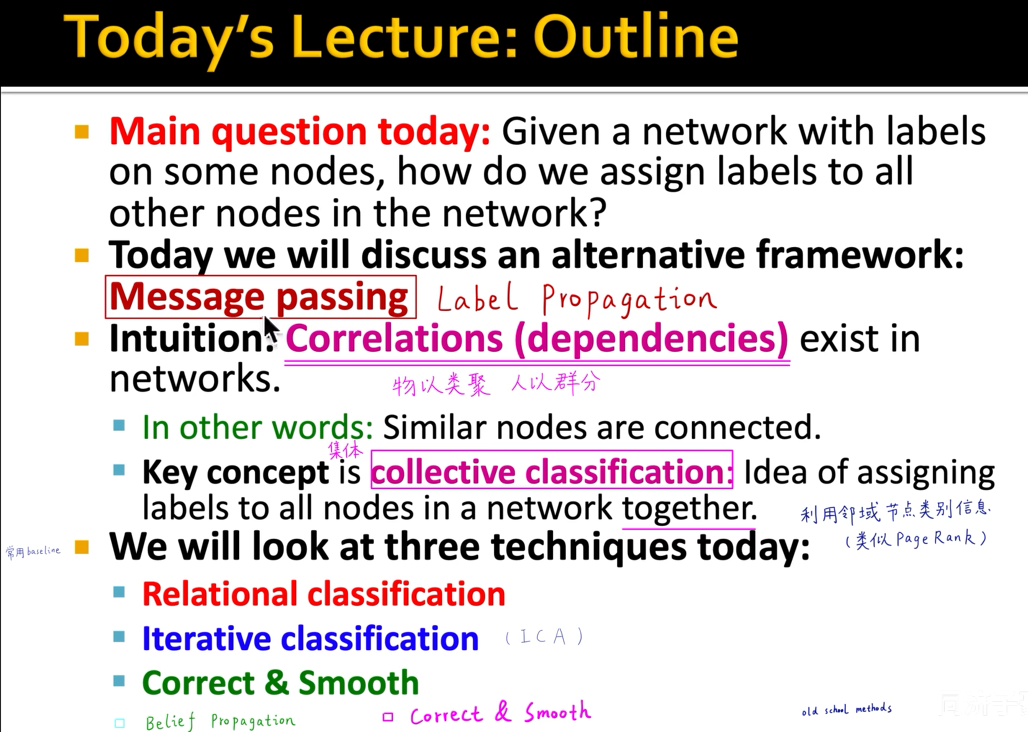

https://github.com/spiritysdx/images/blob/main/20231020/7.png?raw=true

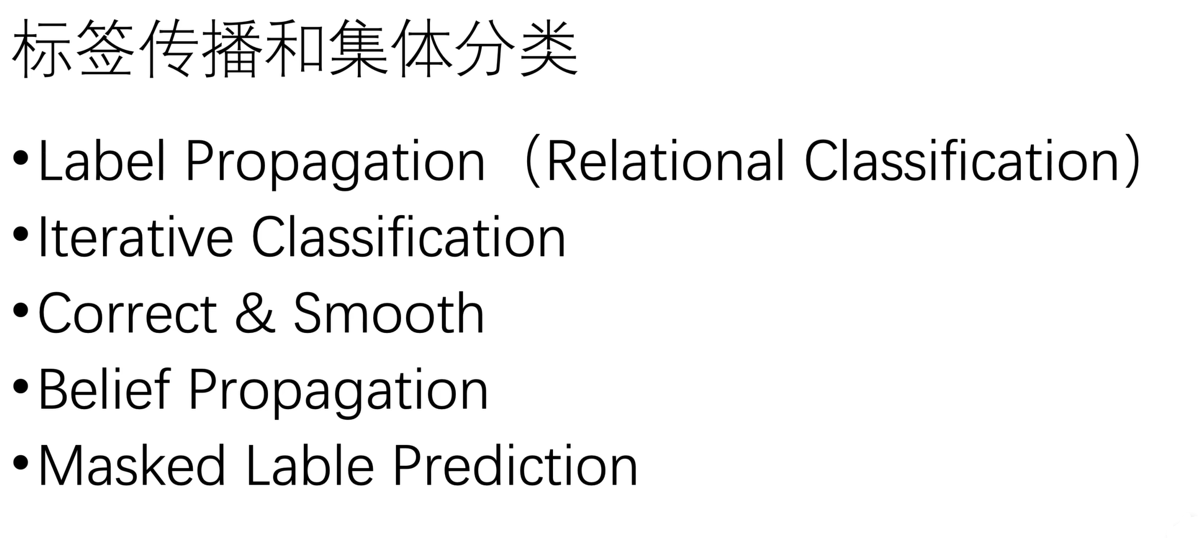

https://github.com/spiritysdx/images/blob/main/20231020/8.png?raw=true

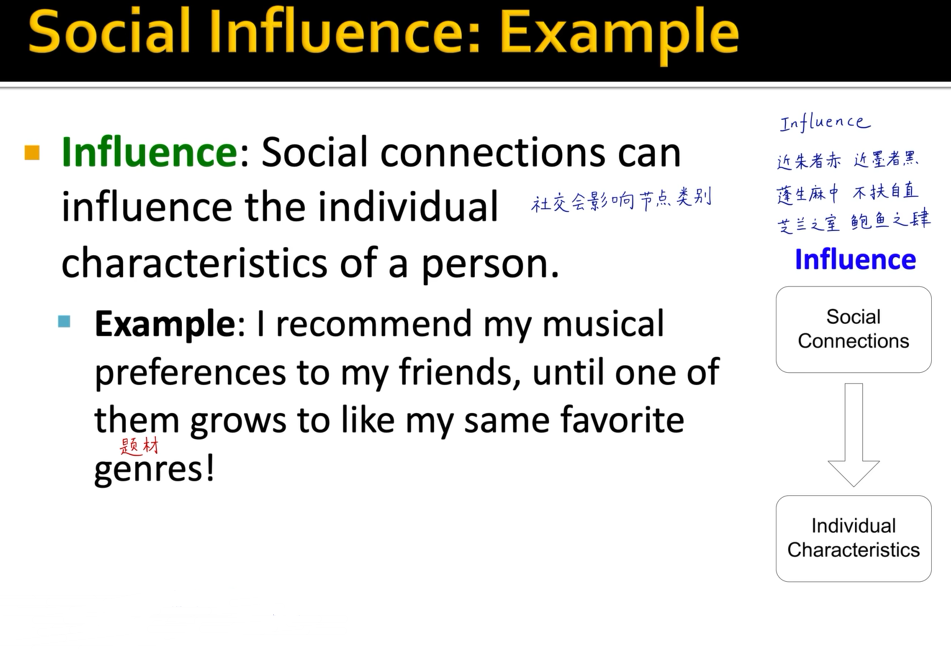

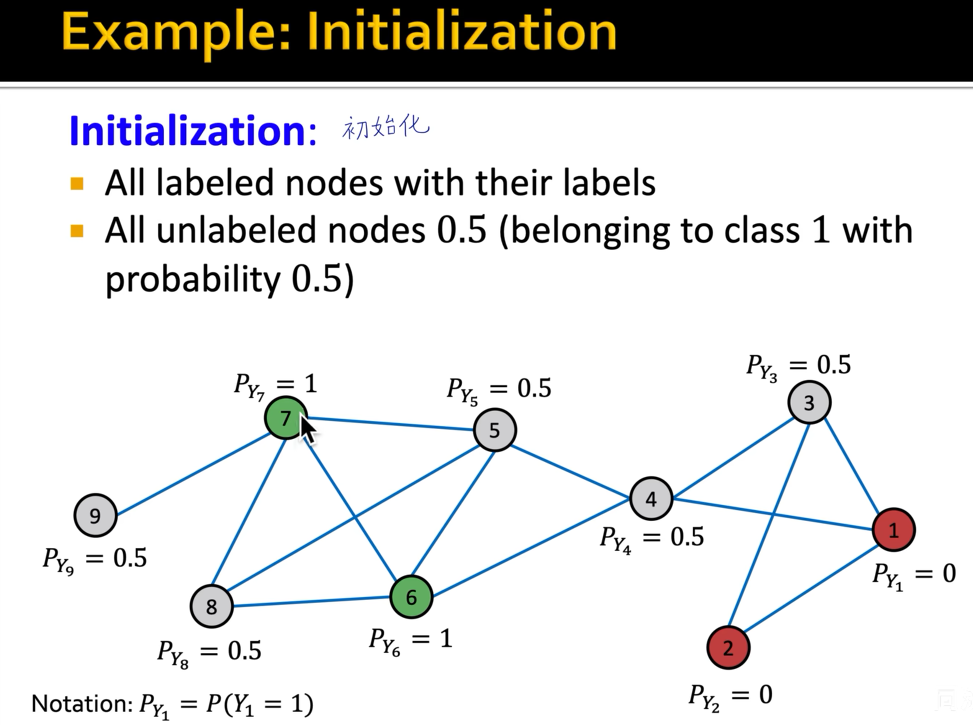

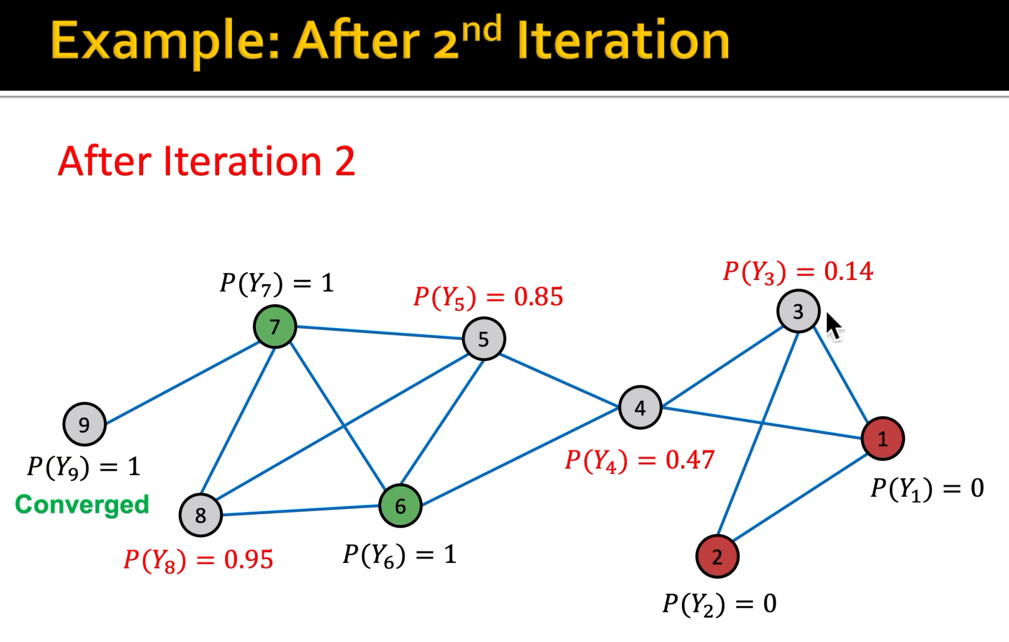

Label Propagation (Relational Classification)

这是一种集体分类方法。

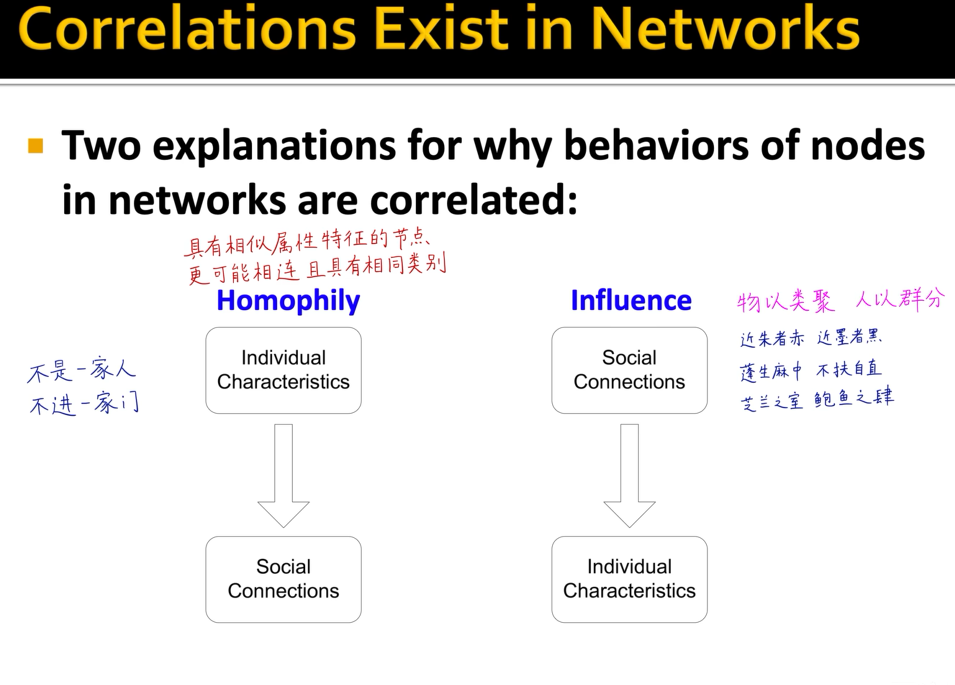

https://github.com/spiritysdx/images/blob/main/20231020/9.png?raw=true

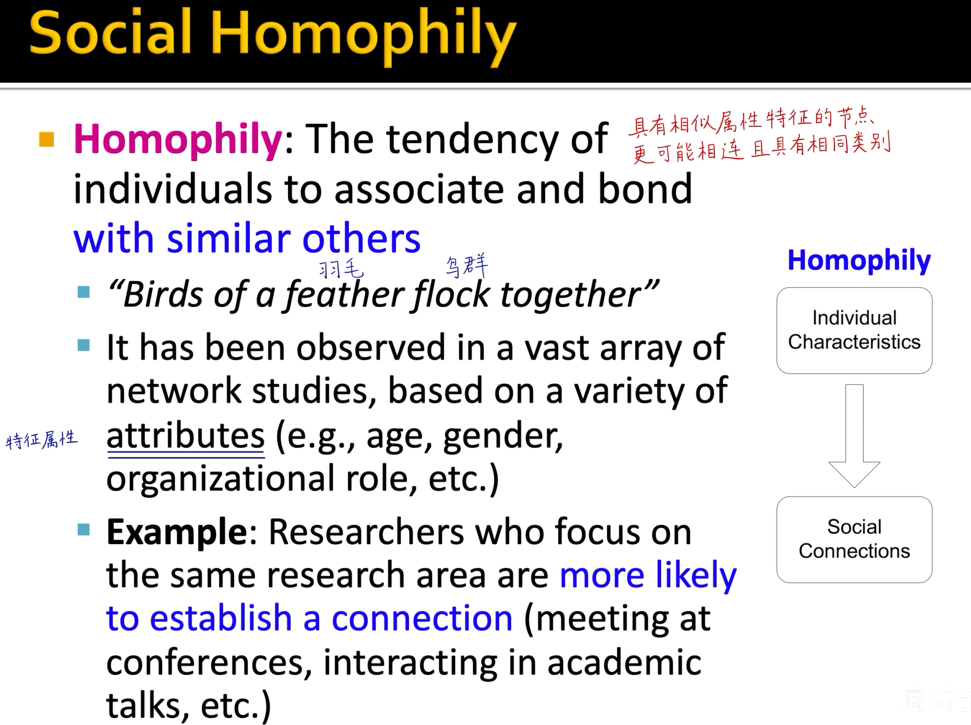

https://github.com/spiritysdx/images/blob/main/20231020/10.png?raw=true

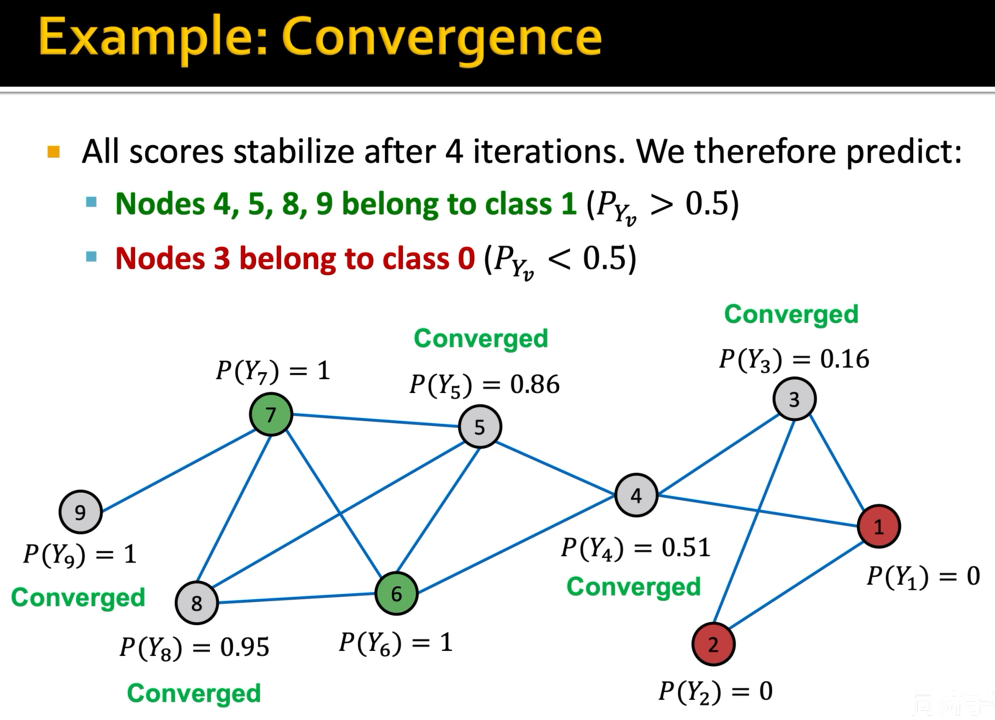

https://github.com/spiritysdx/images/blob/main/20231020/11.png?raw=true

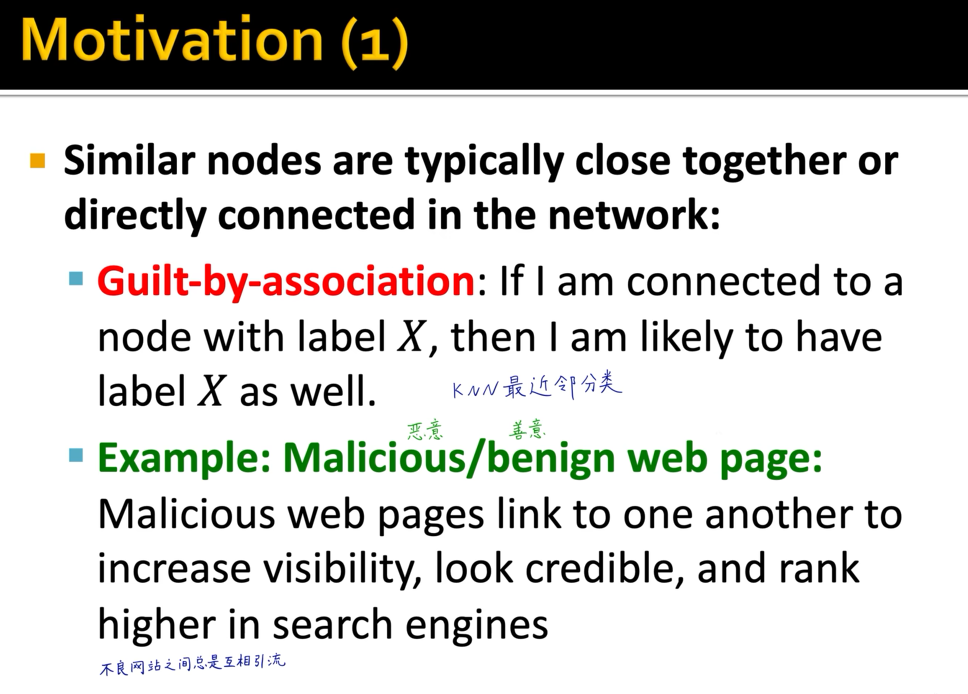

https://github.com/spiritysdx/images/blob/main/20231020/12.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/13.png?raw=true

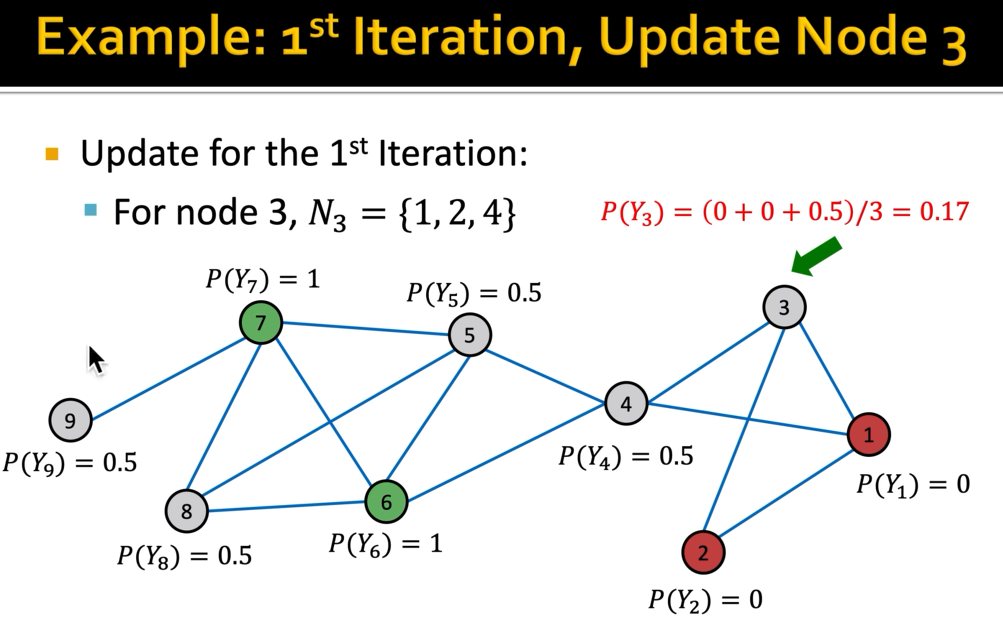

https://github.com/spiritysdx/images/blob/main/20231020/14.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/15.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/16.png?raw=true

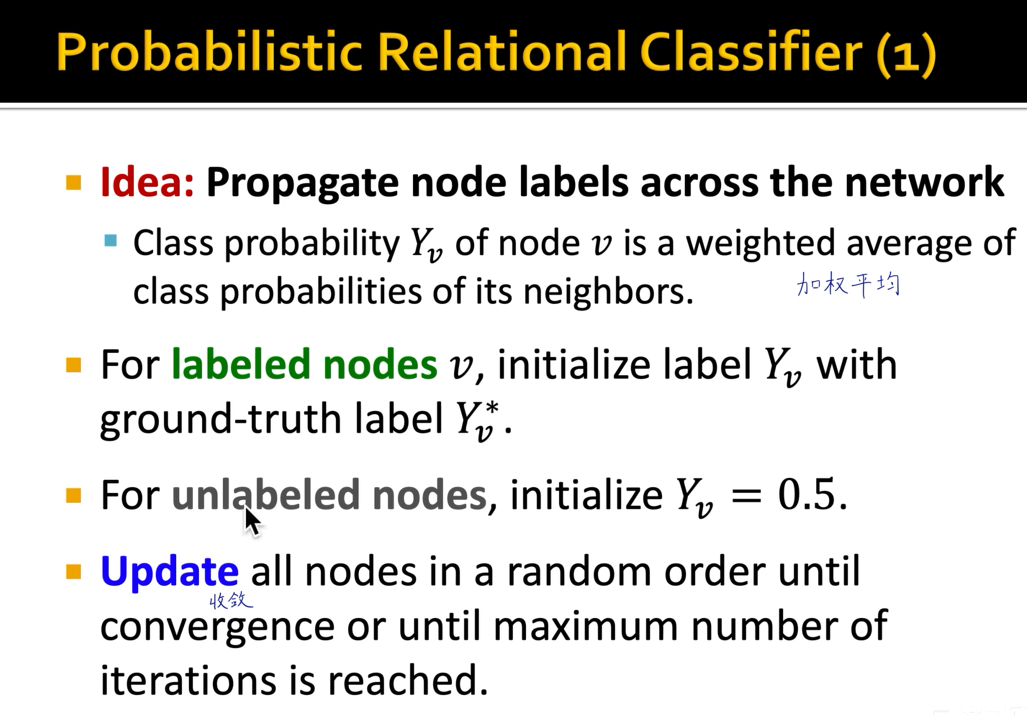

https://github.com/spiritysdx/images/blob/main/20231020/17.png?raw=true

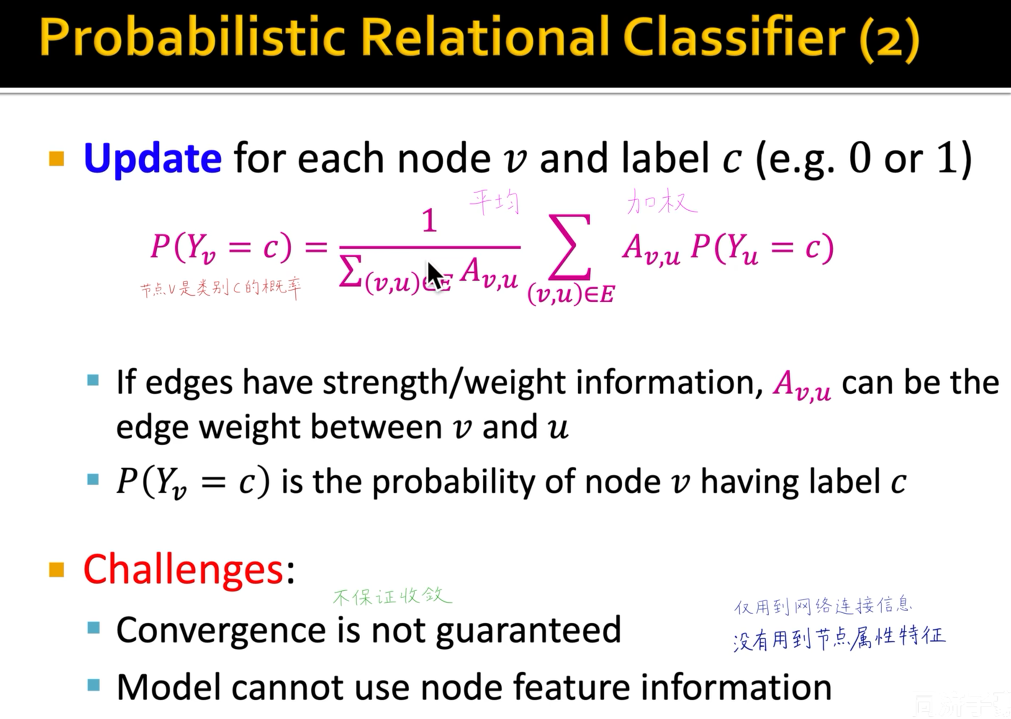

https://github.com/spiritysdx/images/blob/main/20231020/18.png?raw=true

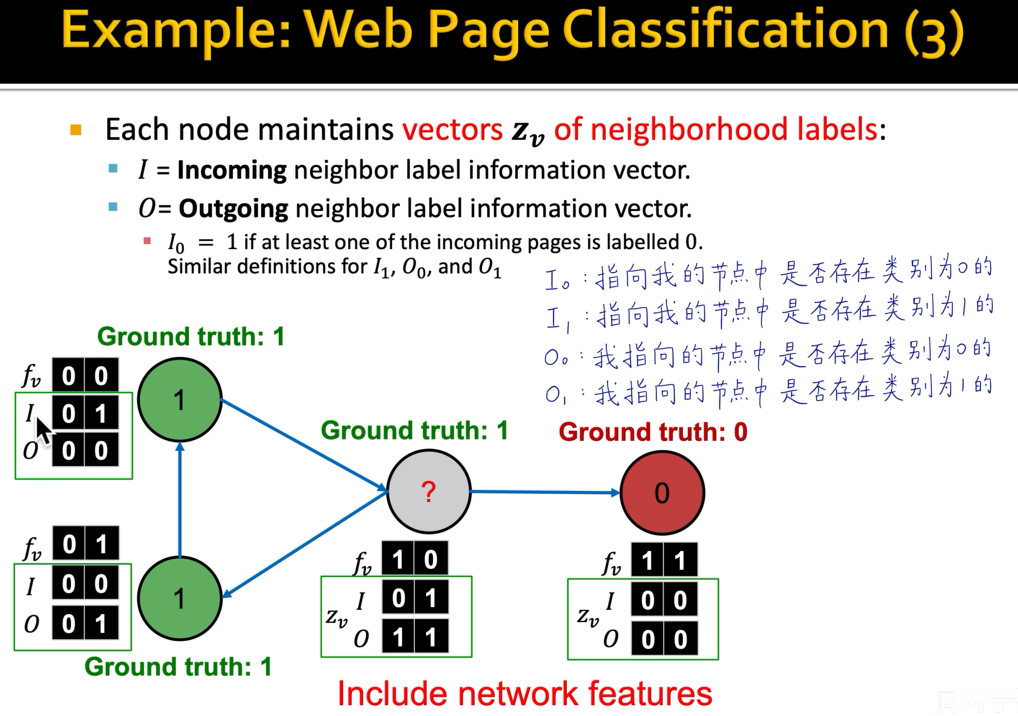

Iterative Classification

这是一种集体分类方法。

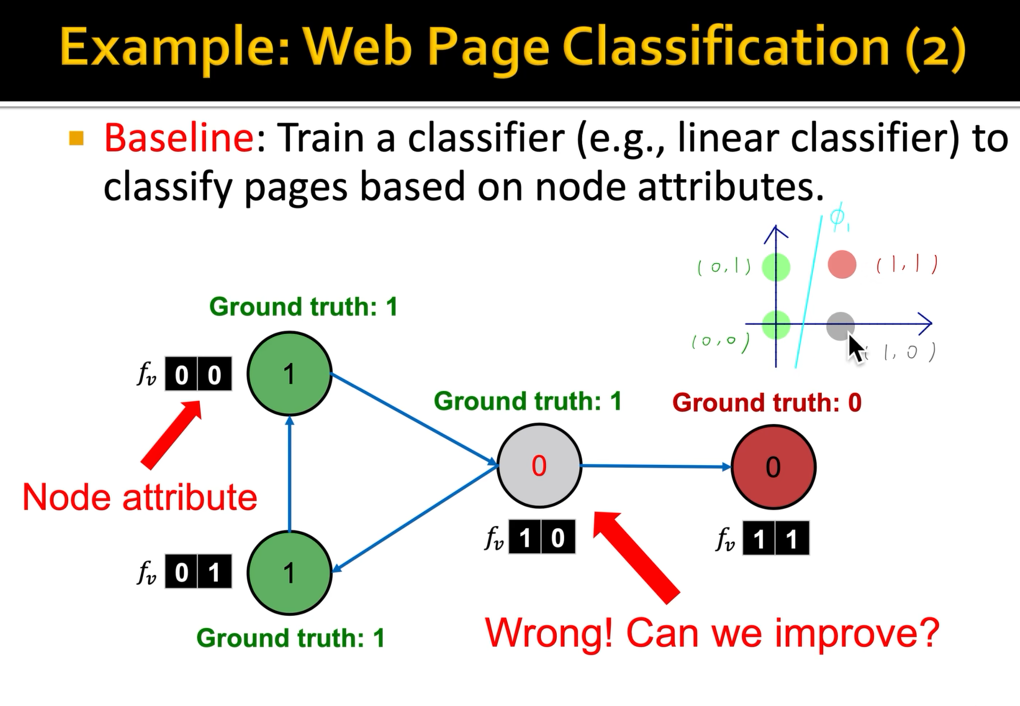

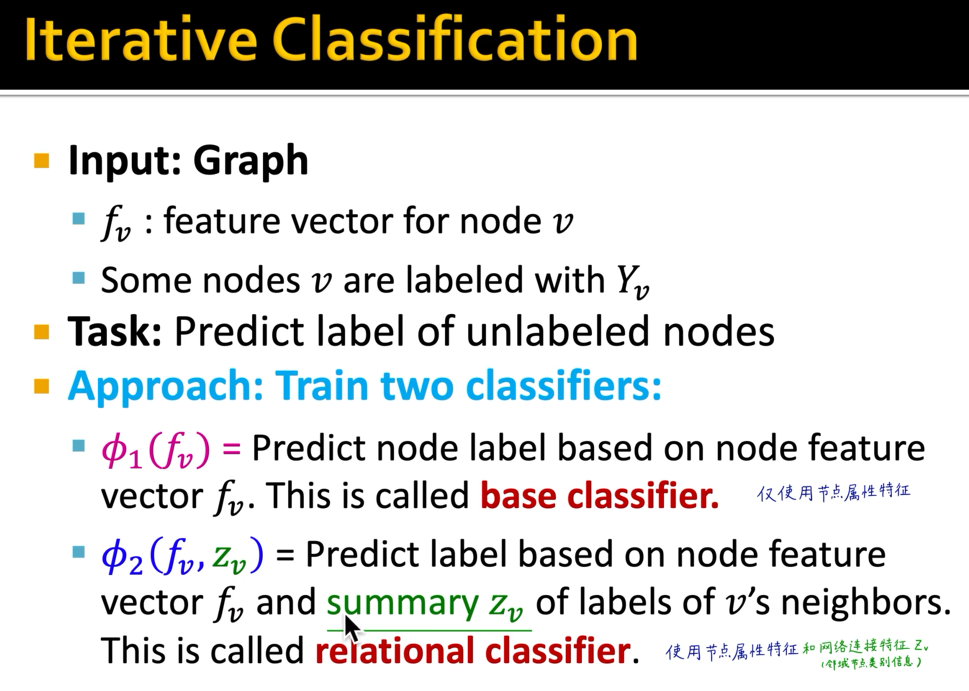

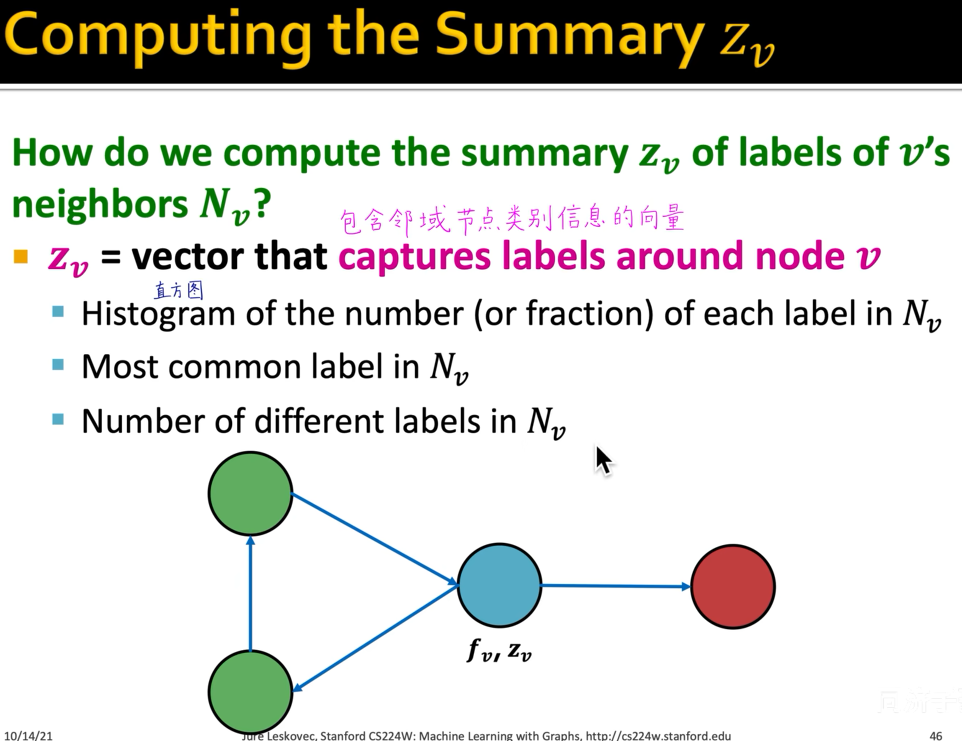

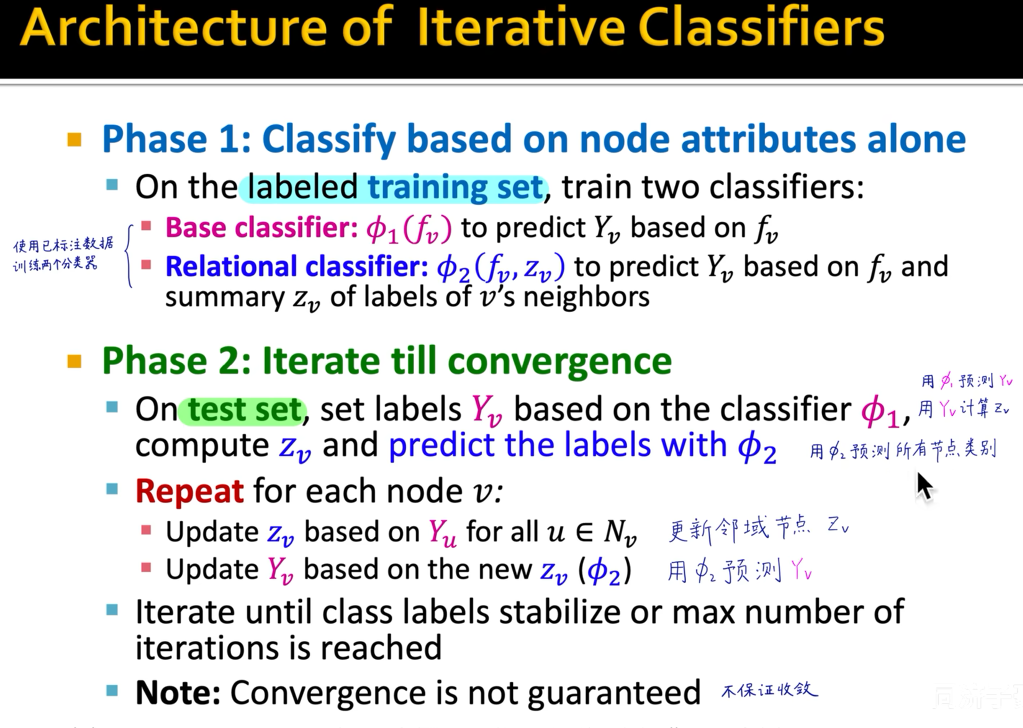

既要用到节点的连接信息,也要用到节点本身的属性信息(特征),分别训练两个分类器解决。

https://github.com/spiritysdx/images/blob/main/20231020/19.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/20.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/21.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/22.png?raw=true

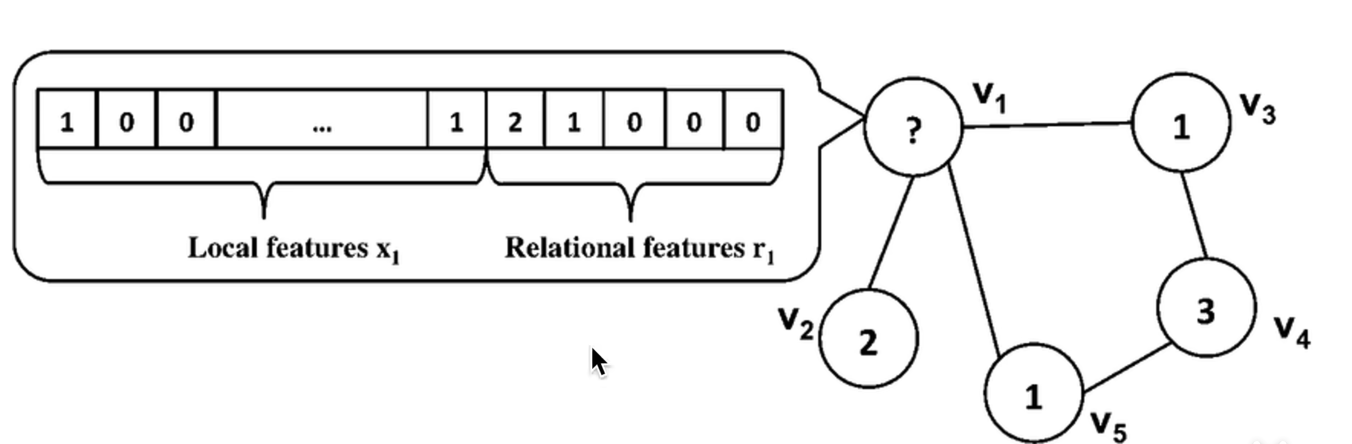

https://github.com/spiritysdx/images/blob/main/20231020/23.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/24.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/25.png?raw=true

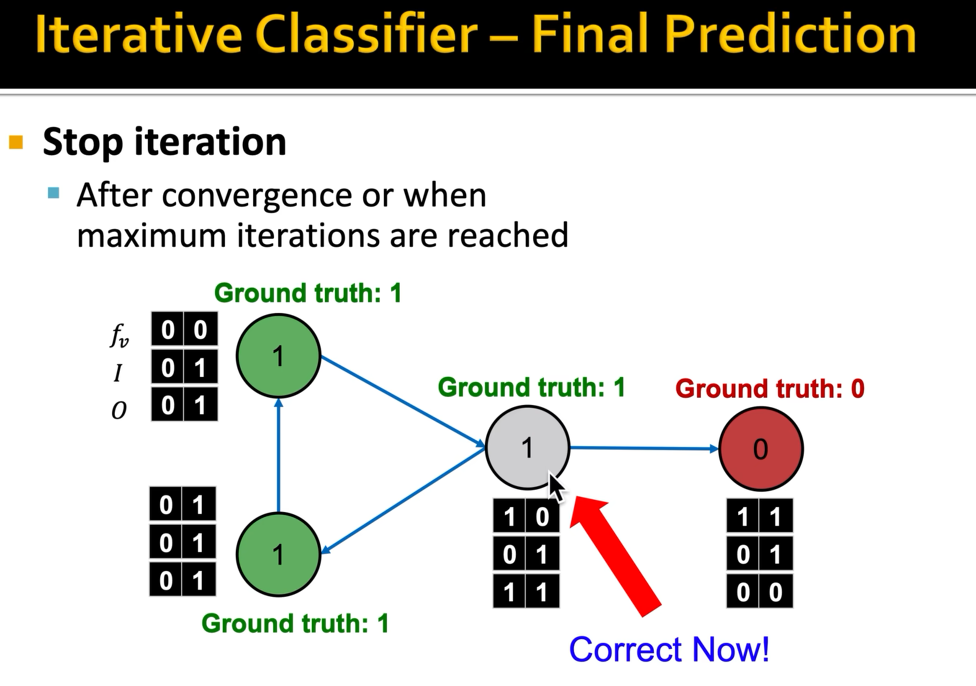

https://github.com/spiritysdx/images/blob/main/20231020/26.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/27.png?raw=true

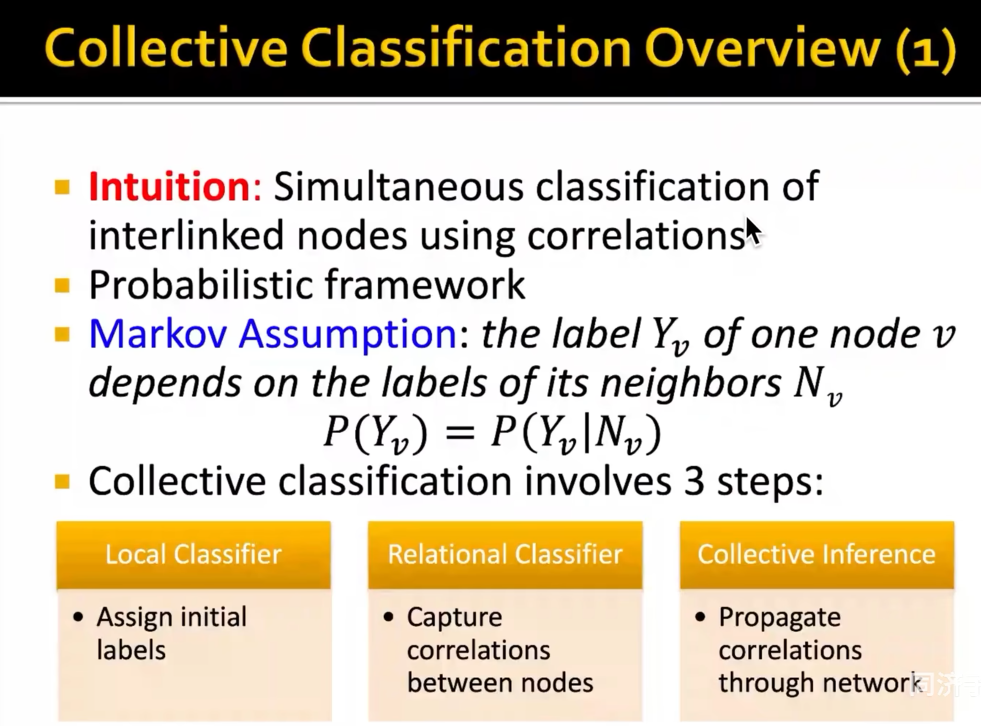

我是什么类别仅取决于与我直接相连的节点是什么类别,而间接的邻居与我无关。(马尔可夫假设)

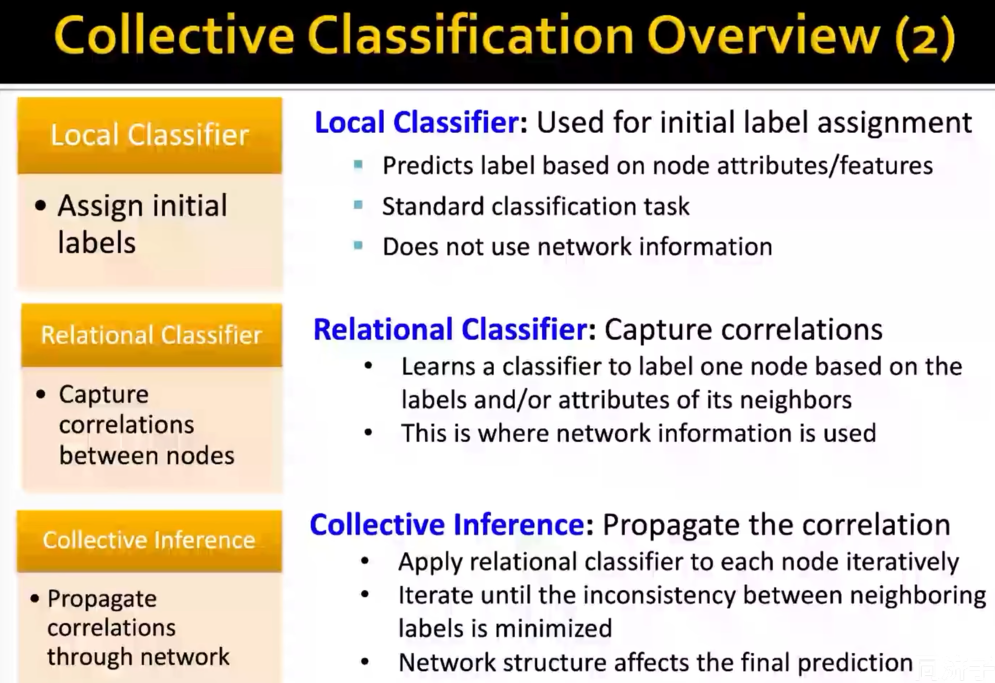

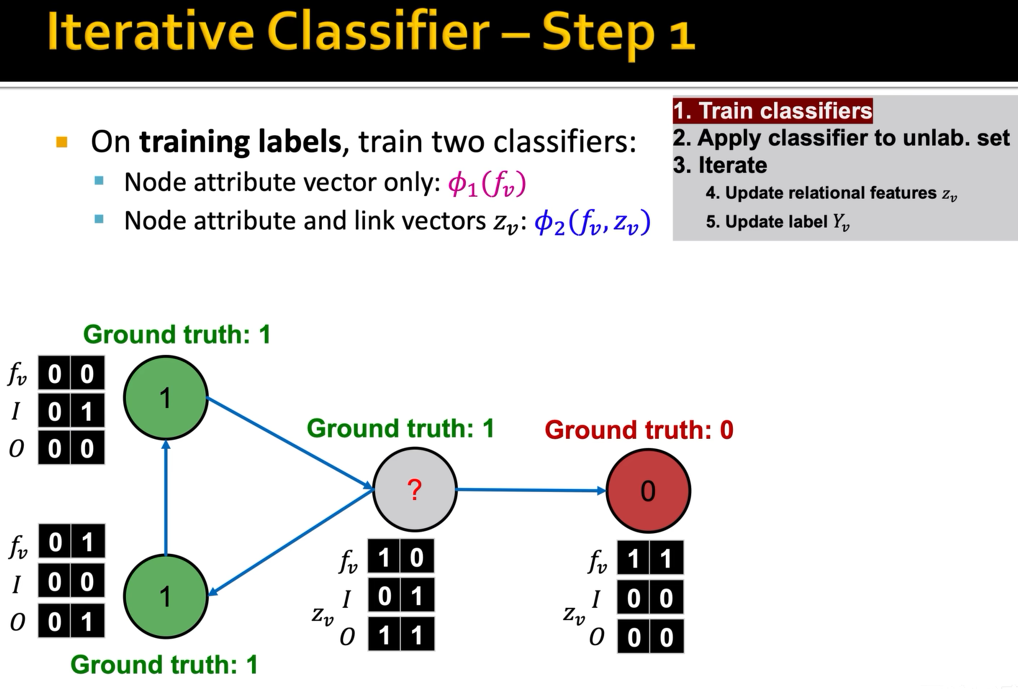

初始化所有节点类别(训练∂1) –> 捕捉相关关系和连接关系(训练∂2) –> 迭代去预测(传播)

https://github.com/spiritysdx/images/blob/main/20231020/28.png?raw=true

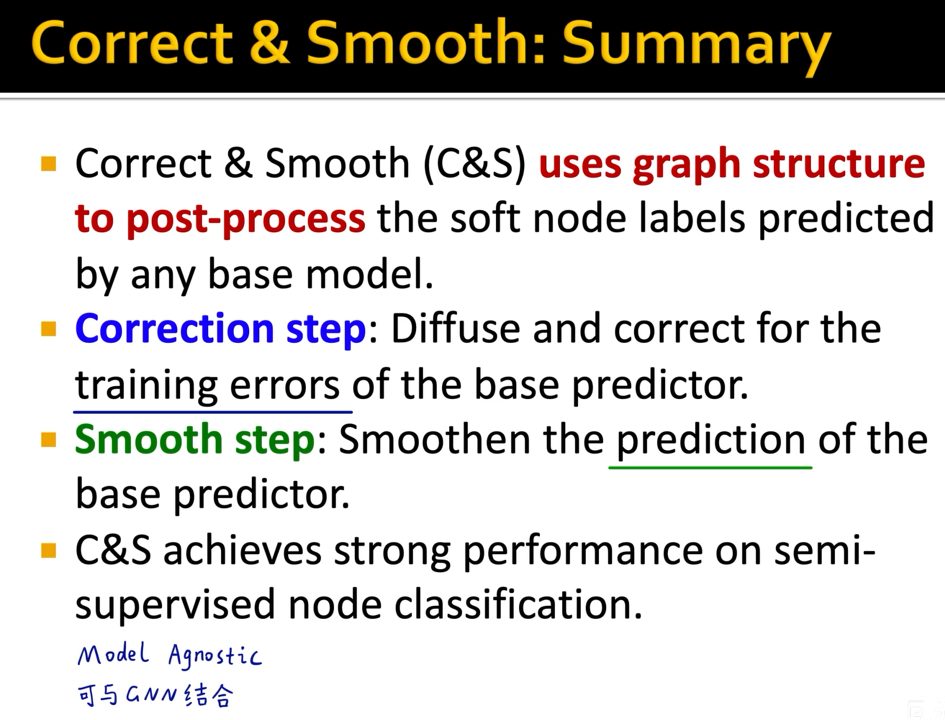

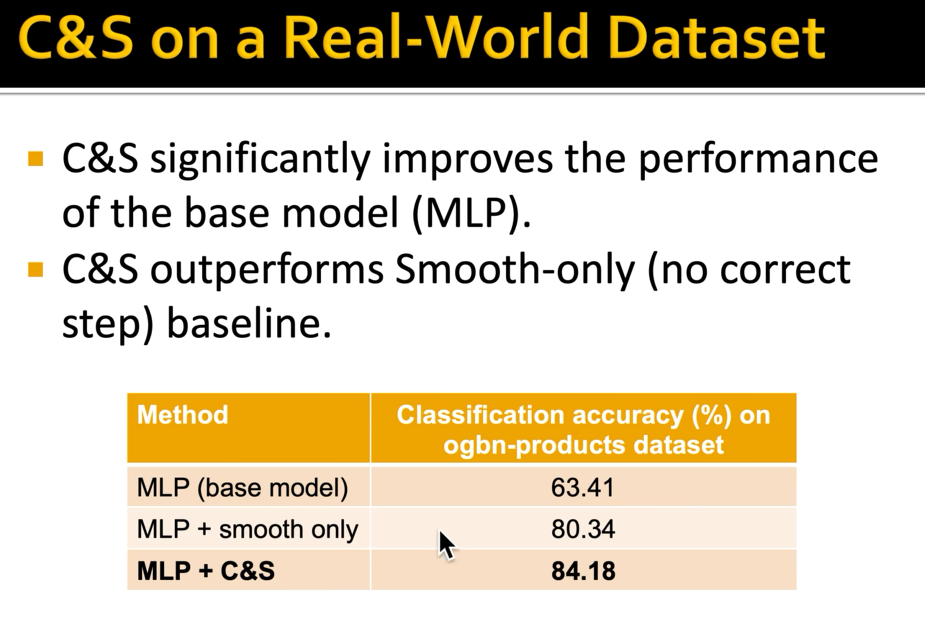

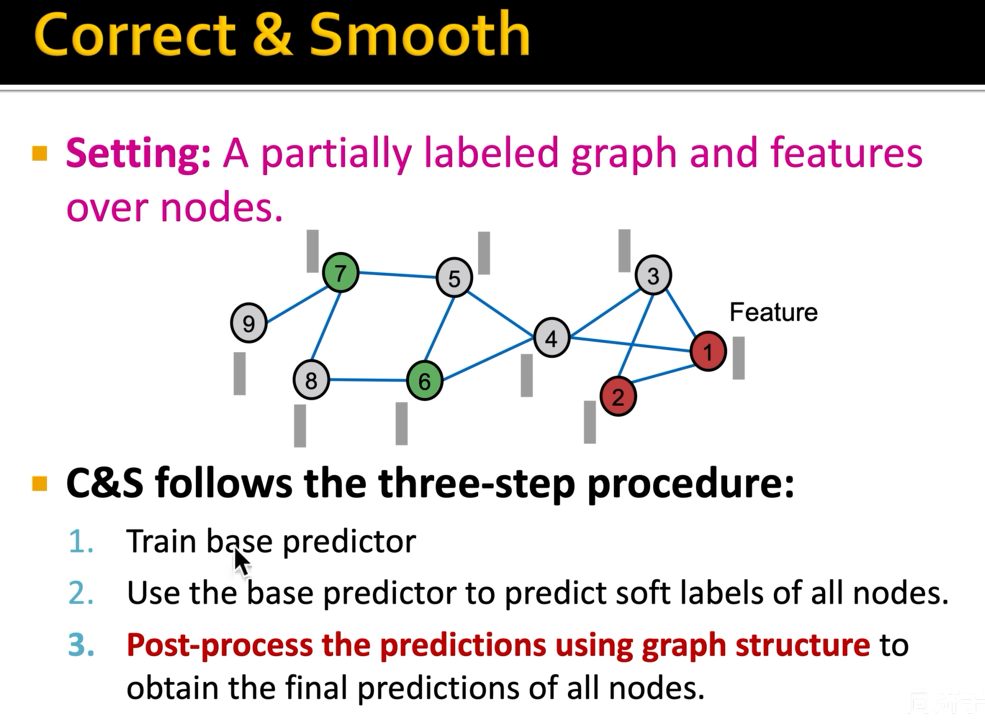

Correct & Smooth

OGB数据集:https://ogb.stanford.edu

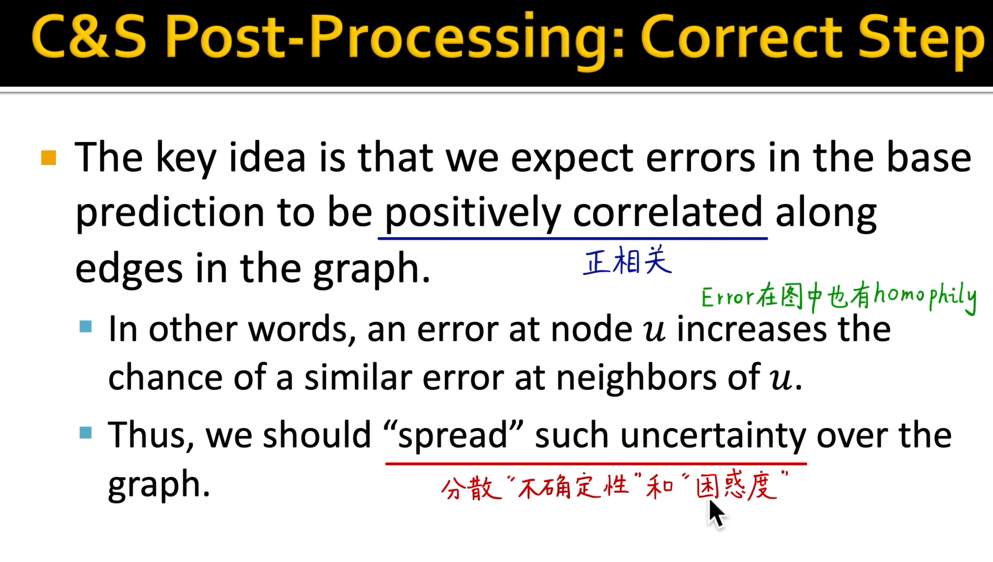

这是一种后处理的方法,修正结果变得更好。

https://github.com/spiritysdx/images/blob/main/20231020/29.png?raw=true

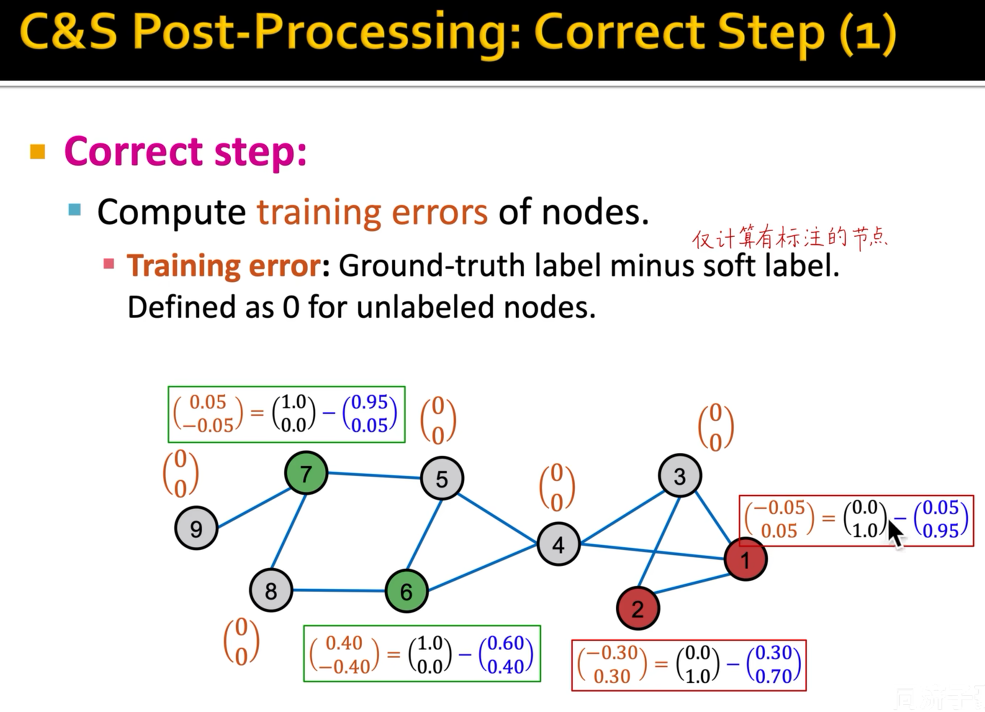

这里使用的soft_labels就是每个类别都有一个概率,概率之和是1。

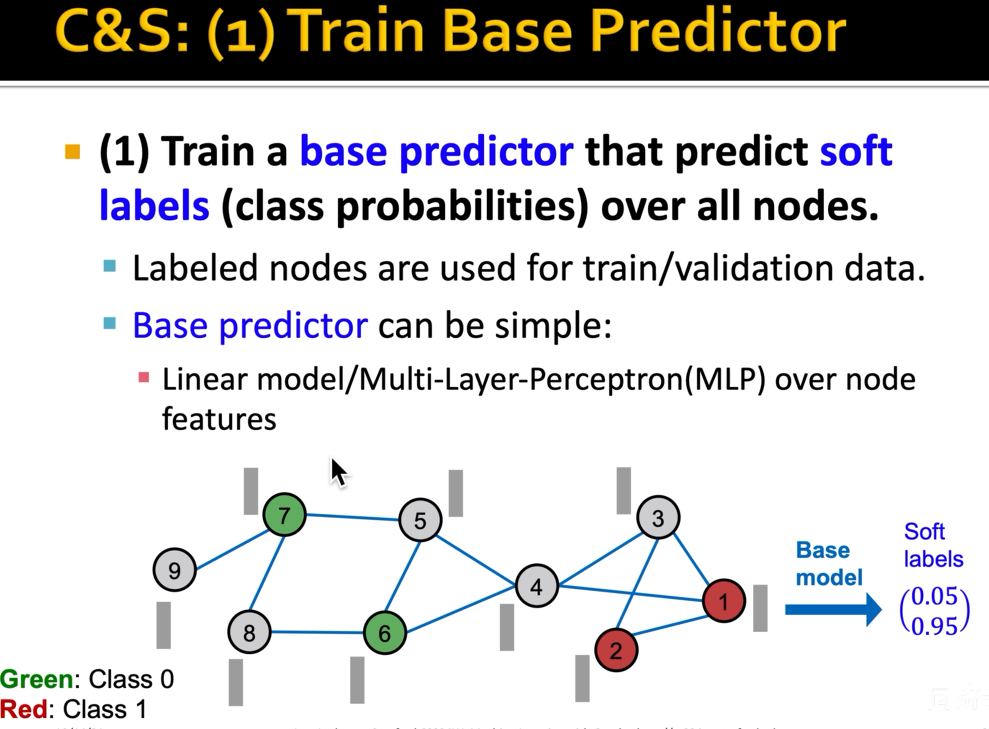

https://github.com/spiritysdx/images/blob/main/20231020/30.png?raw=true

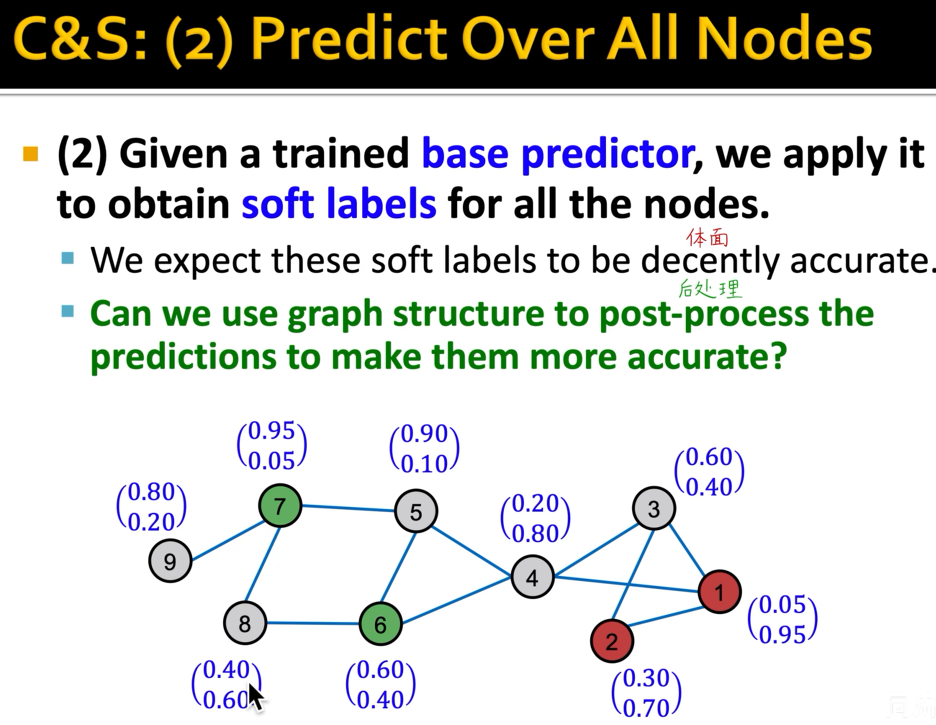

https://github.com/spiritysdx/images/blob/main/20231020/31.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/32.png?raw=true

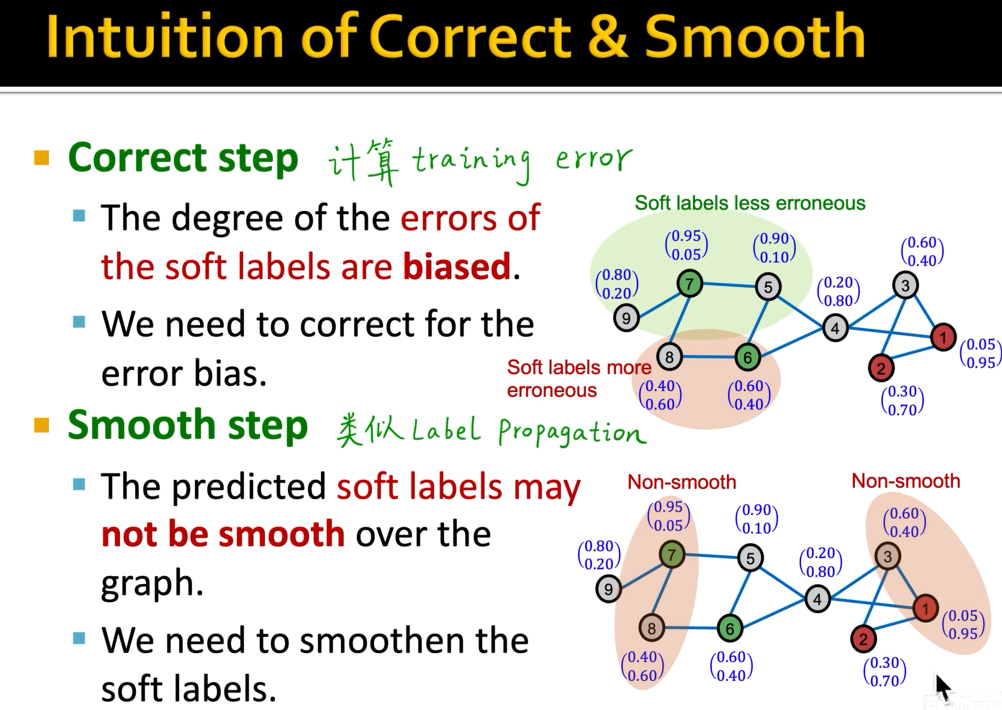

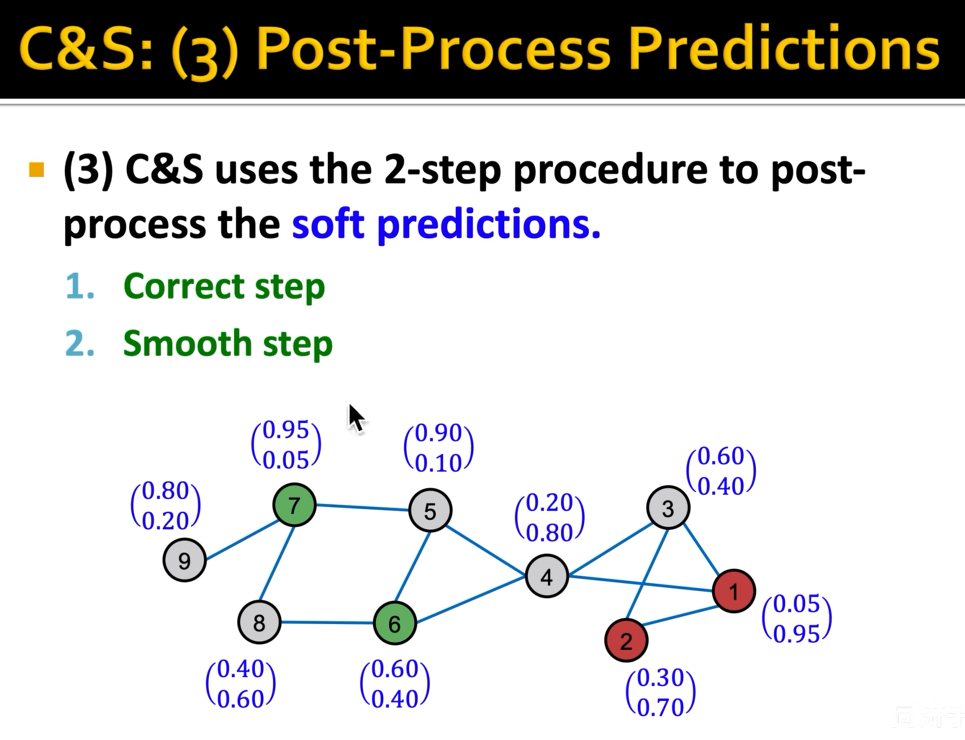

https://github.com/spiritysdx/images/blob/main/20231020/33.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/34.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/35.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/36.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/37.png?raw=true

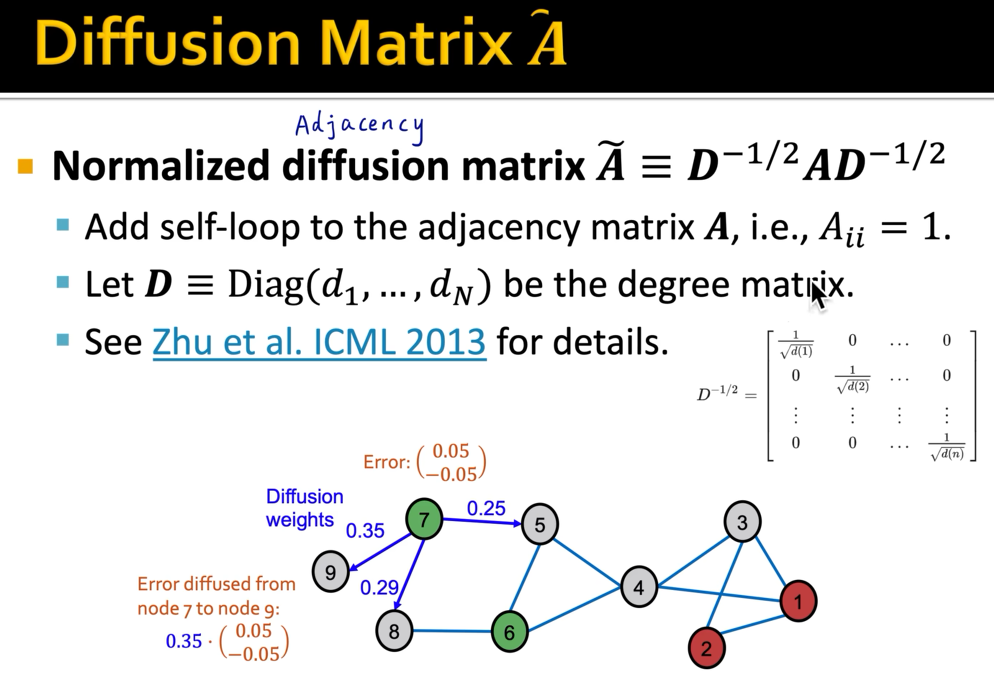

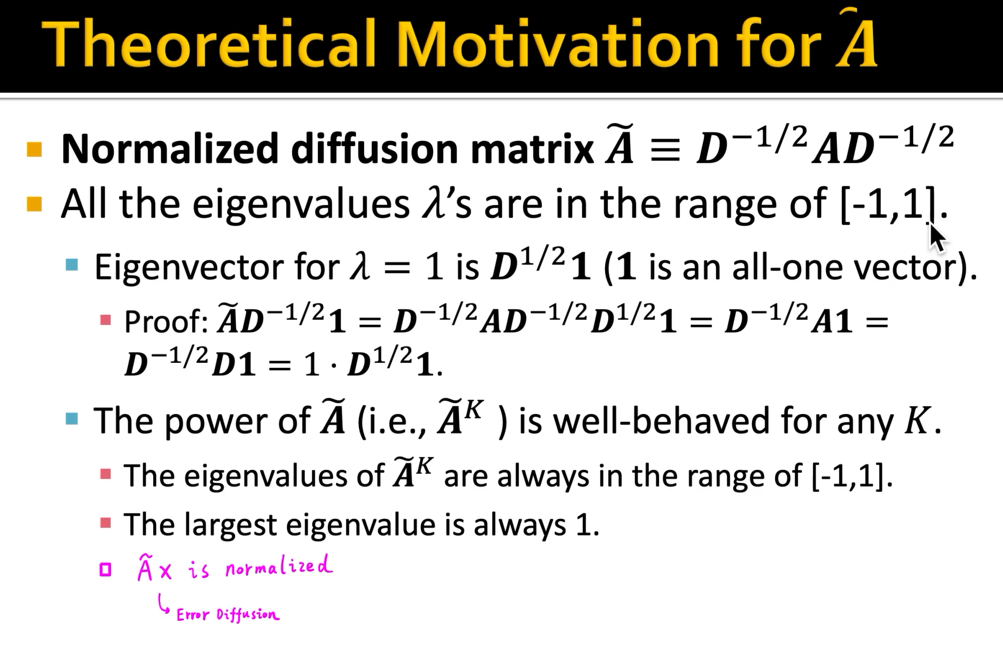

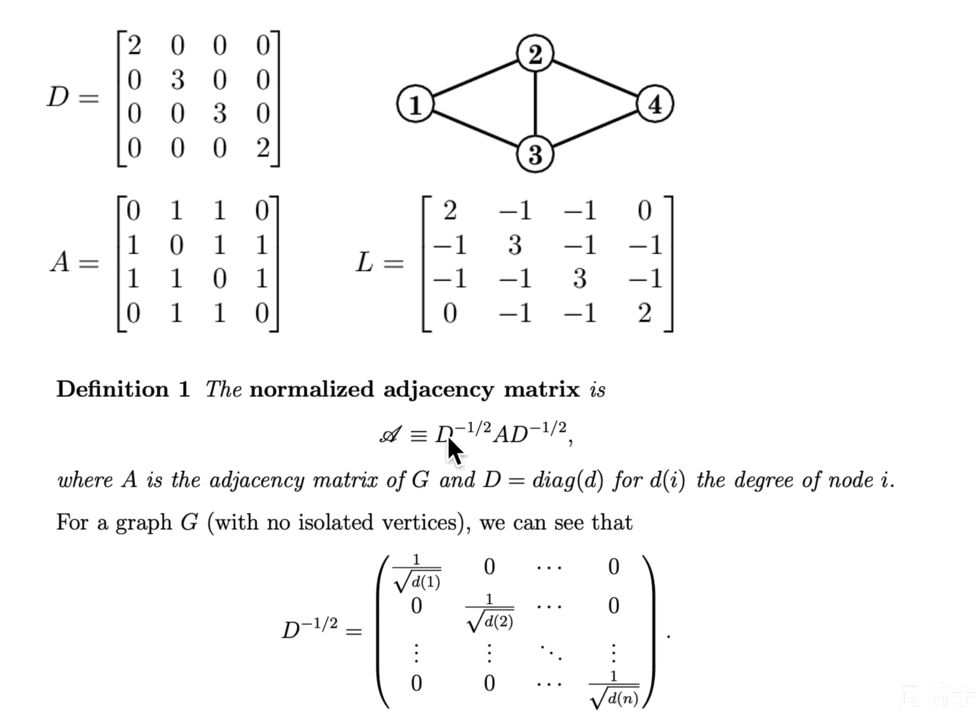

L = D - A

https://github.com/spiritysdx/images/blob/main/20231020/38.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/39.png?raw=true

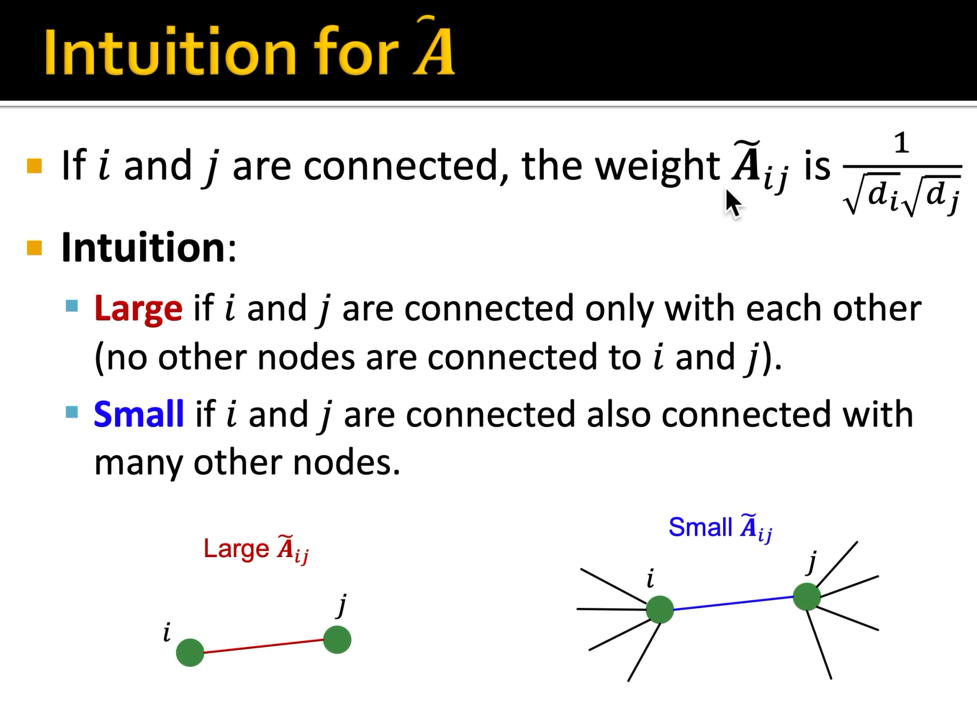

https://github.com/spiritysdx/images/blob/main/20231020/40.png?raw=true

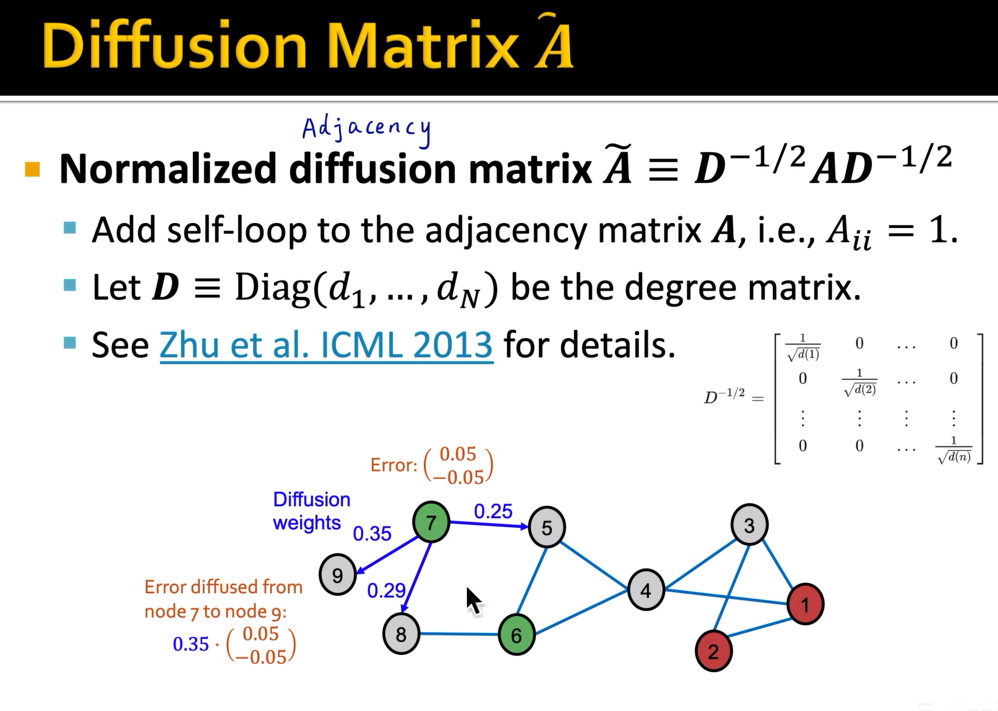

https://github.com/spiritysdx/images/blob/main/20231020/41.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/42.png?raw=true

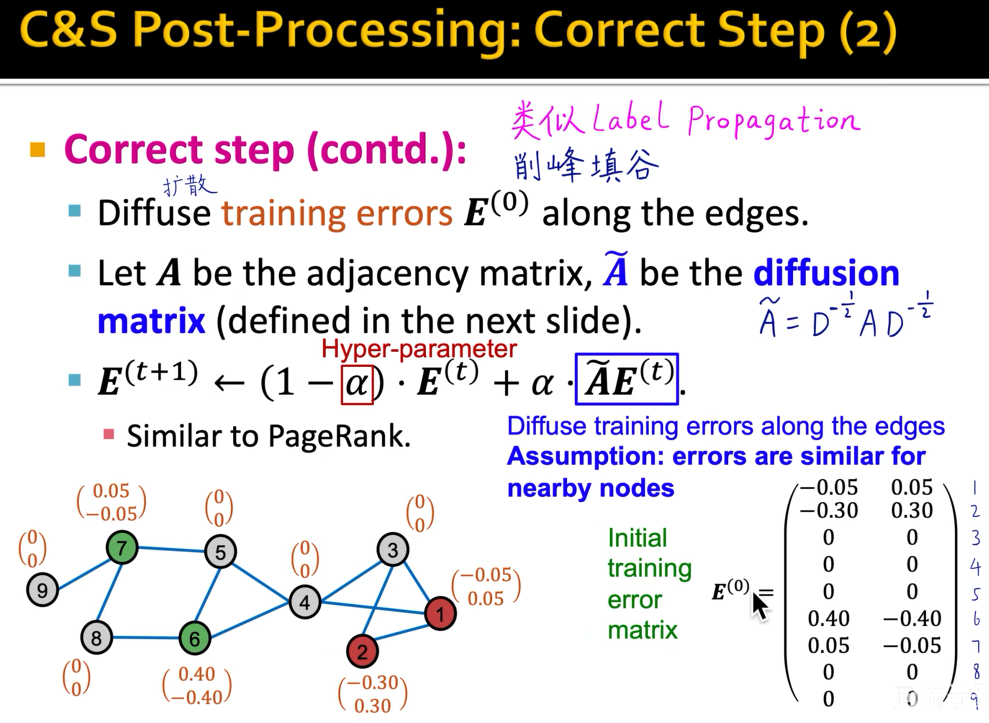

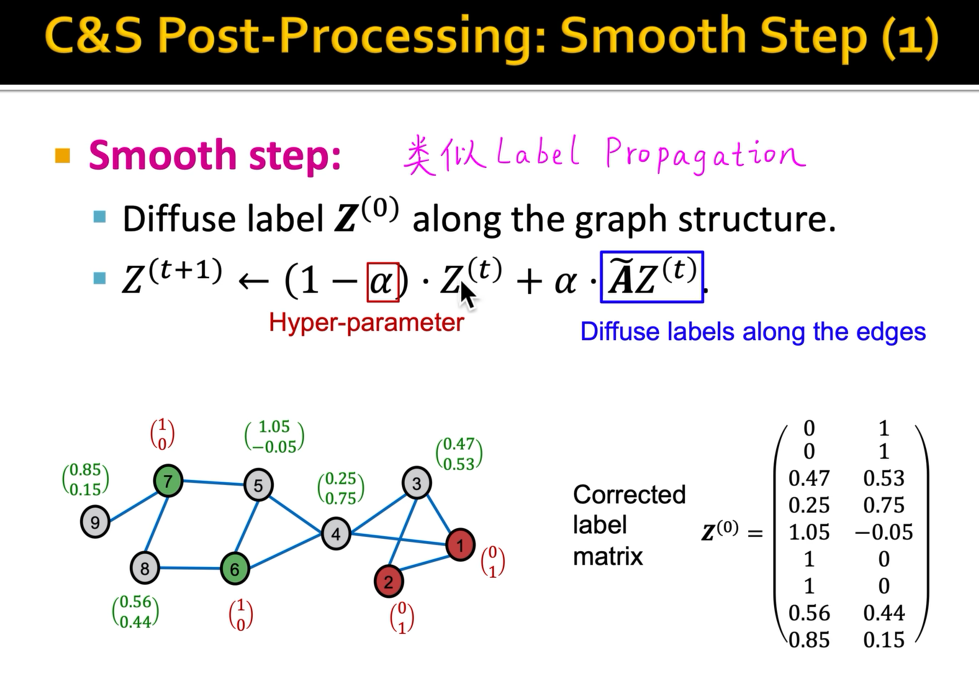

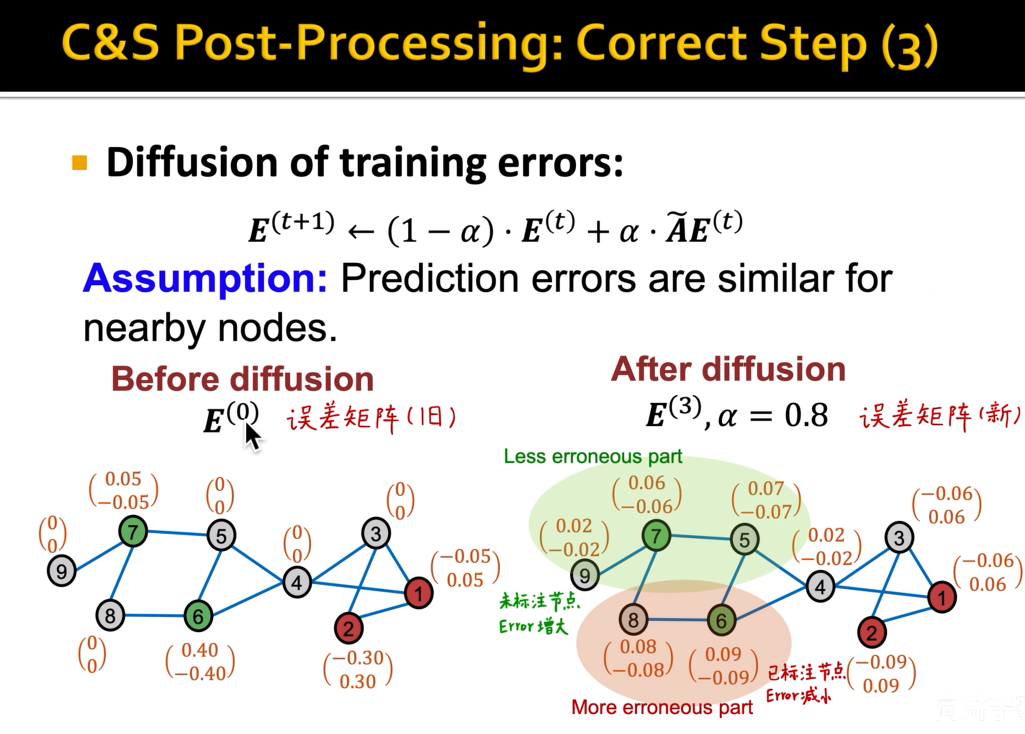

ā的值是超参数,越大表示更愿意相信传播过来的ERROR,越小表示更愿意相信上一时刻的ERROR。

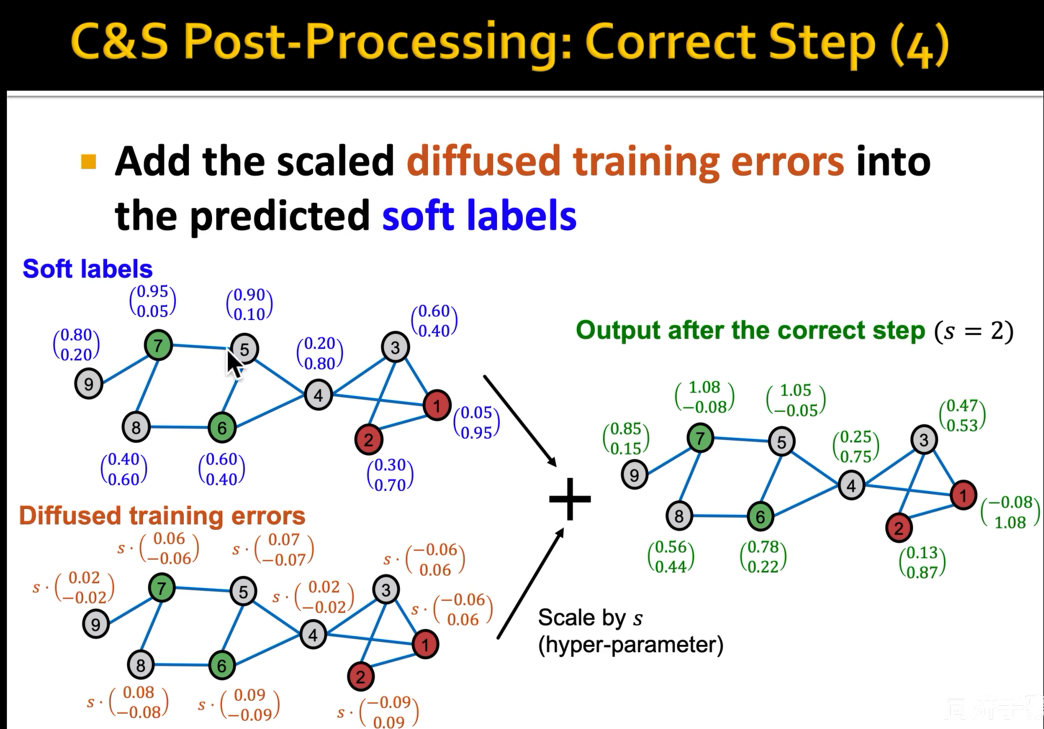

https://github.com/spiritysdx/images/blob/main/20231020/43.png?raw=true

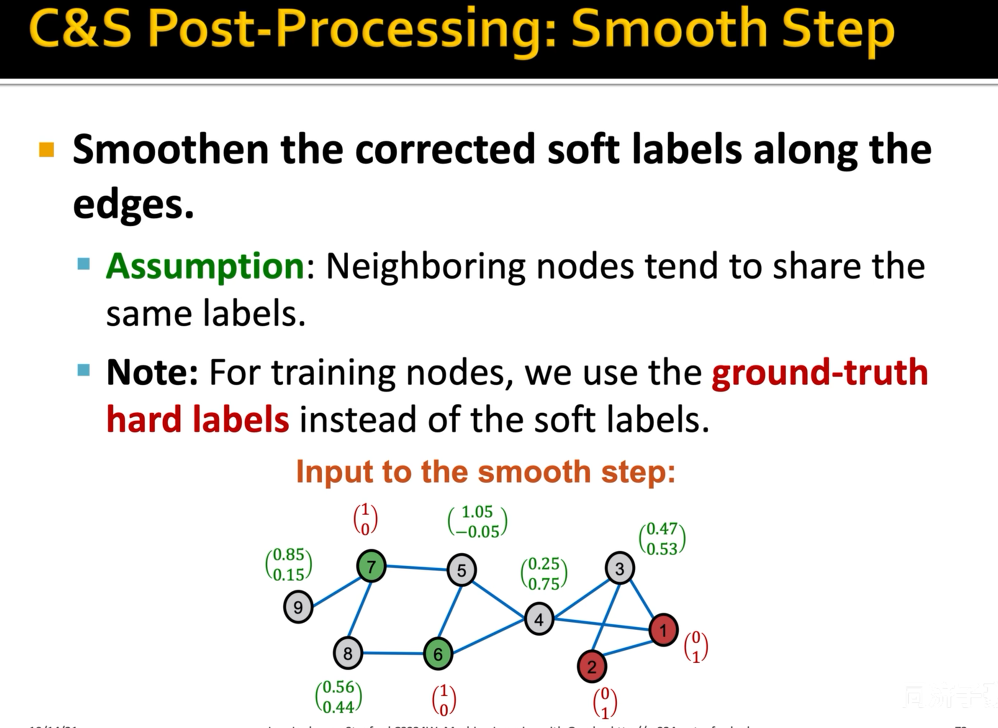

https://github.com/spiritysdx/images/blob/main/20231020/44.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/45.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/46.png?raw=true

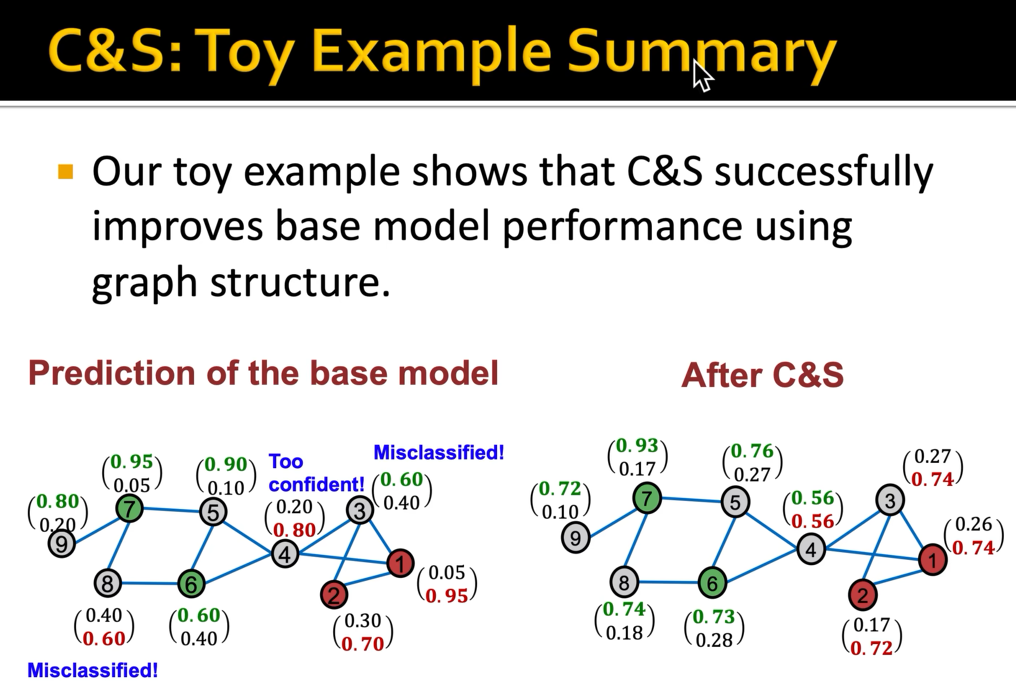

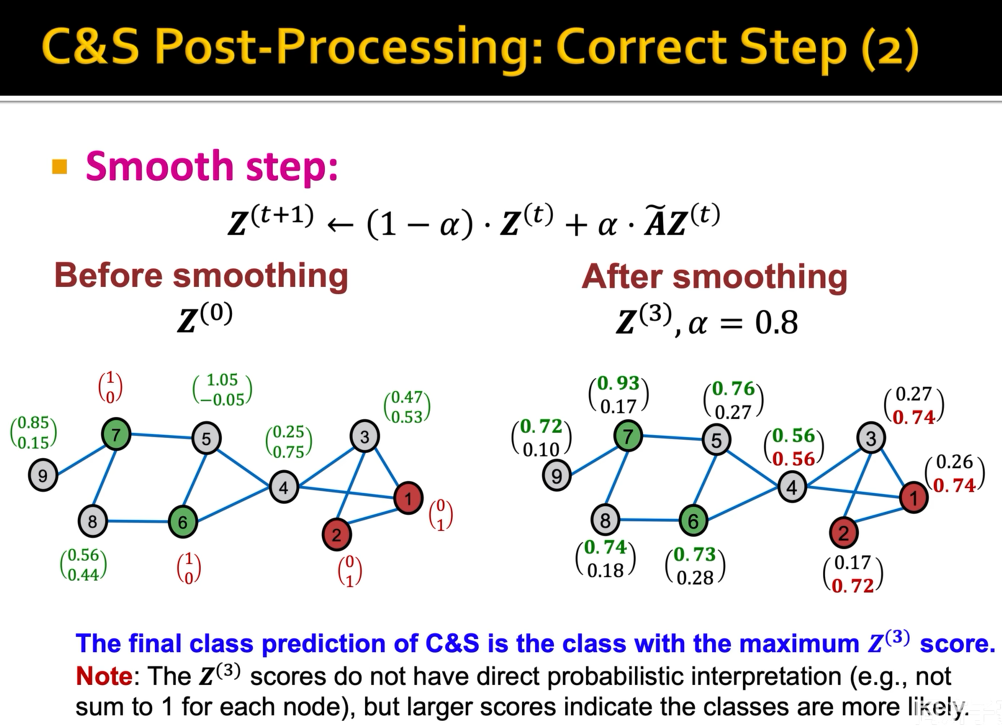

结果求和不为一,但置信度仍较高。

https://github.com/spiritysdx/images/blob/main/20231020/47.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/48.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/49.png?raw=true

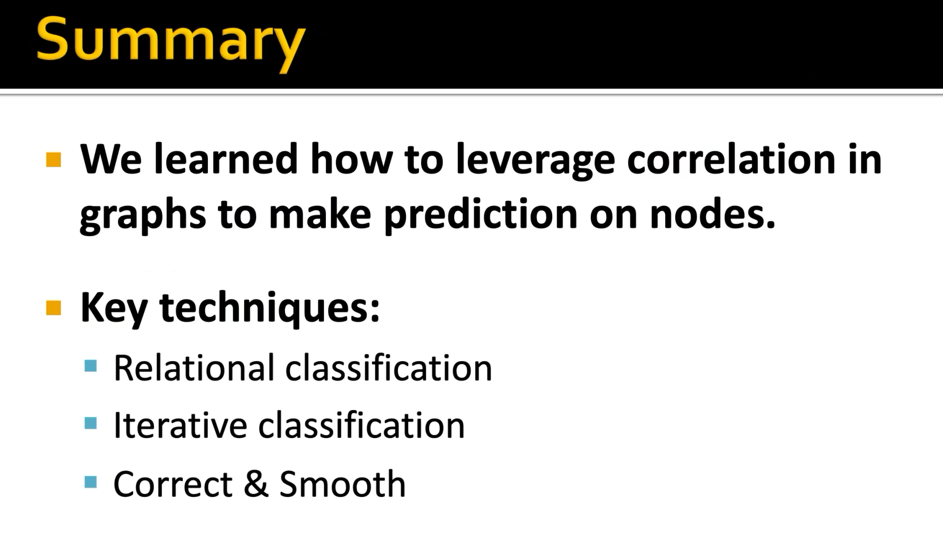

https://github.com/spiritysdx/images/blob/main/20231020/50.png?raw=true

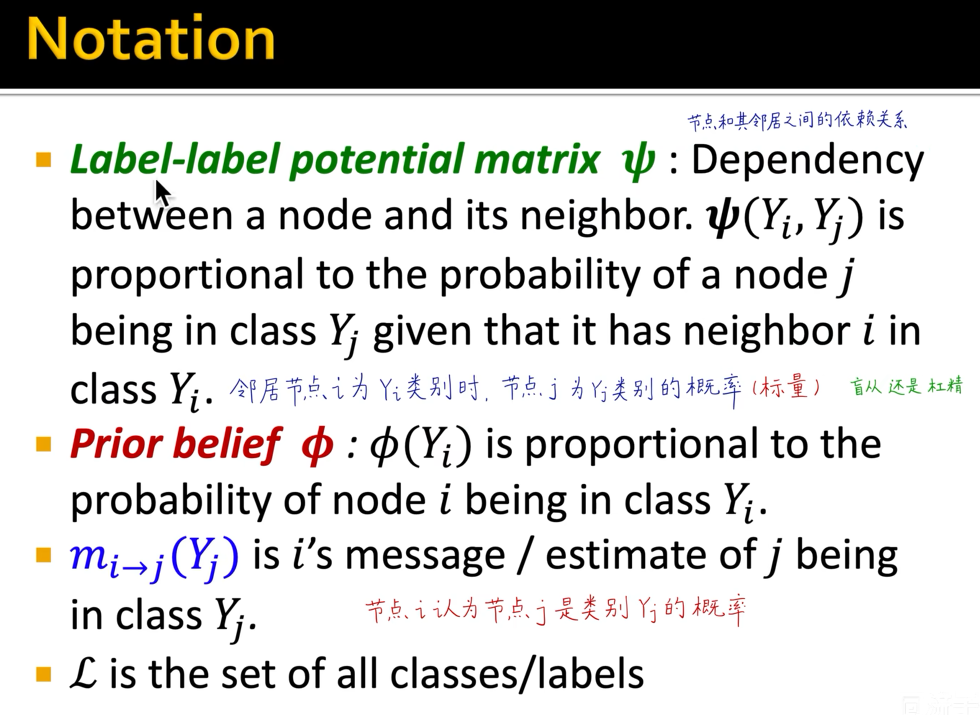

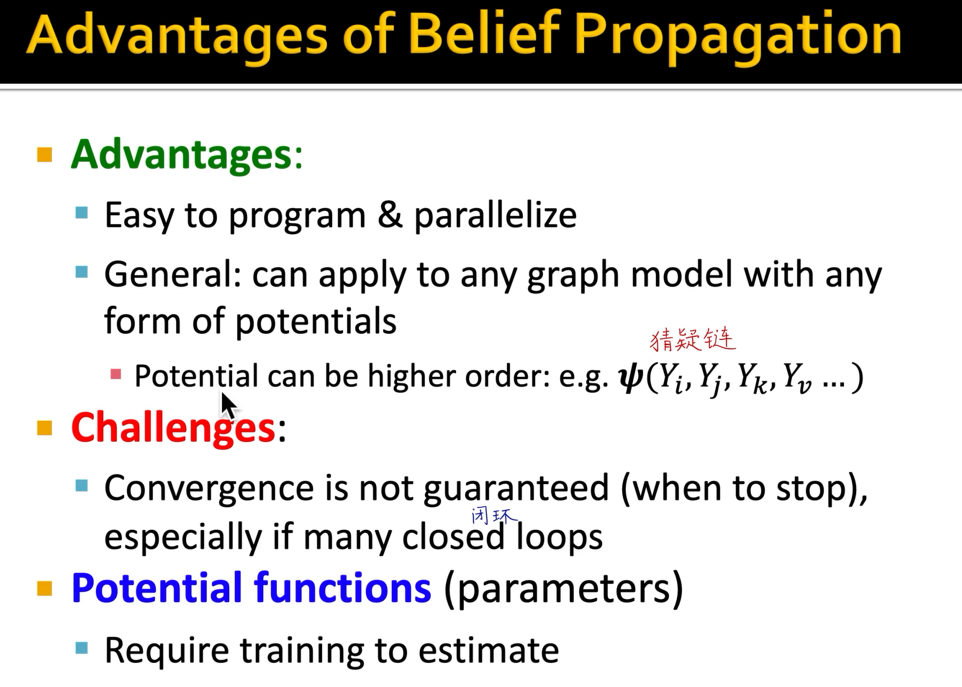

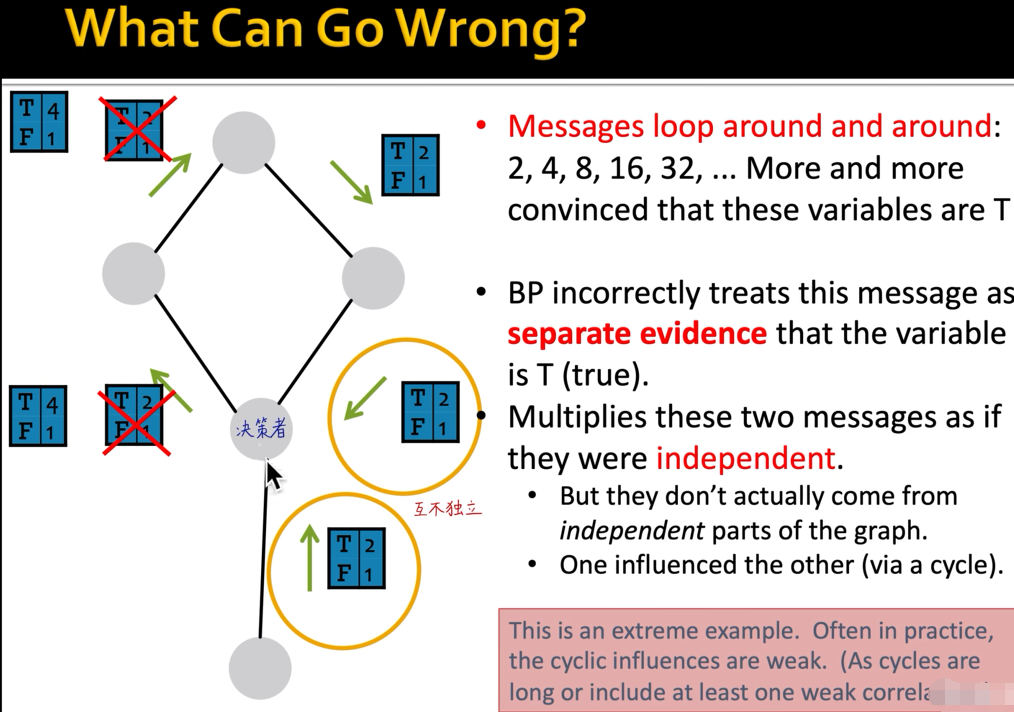

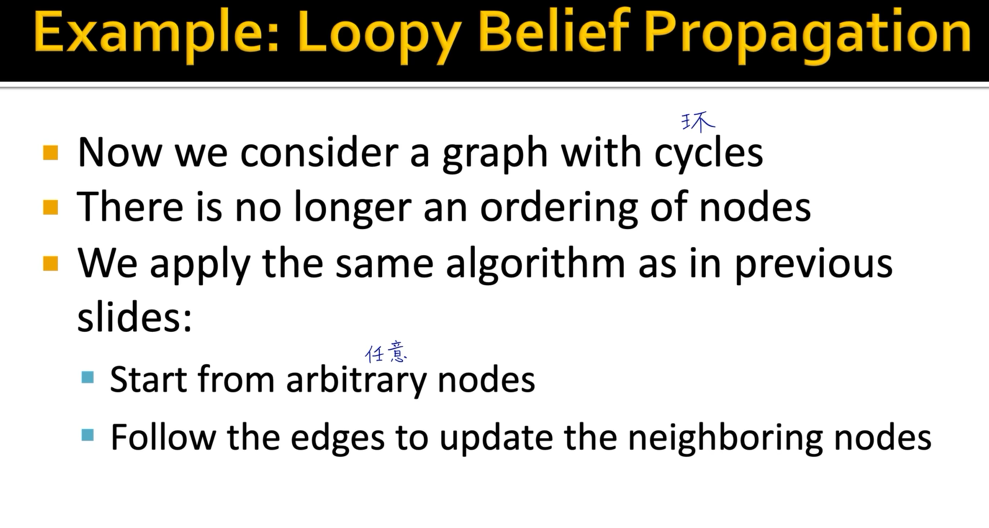

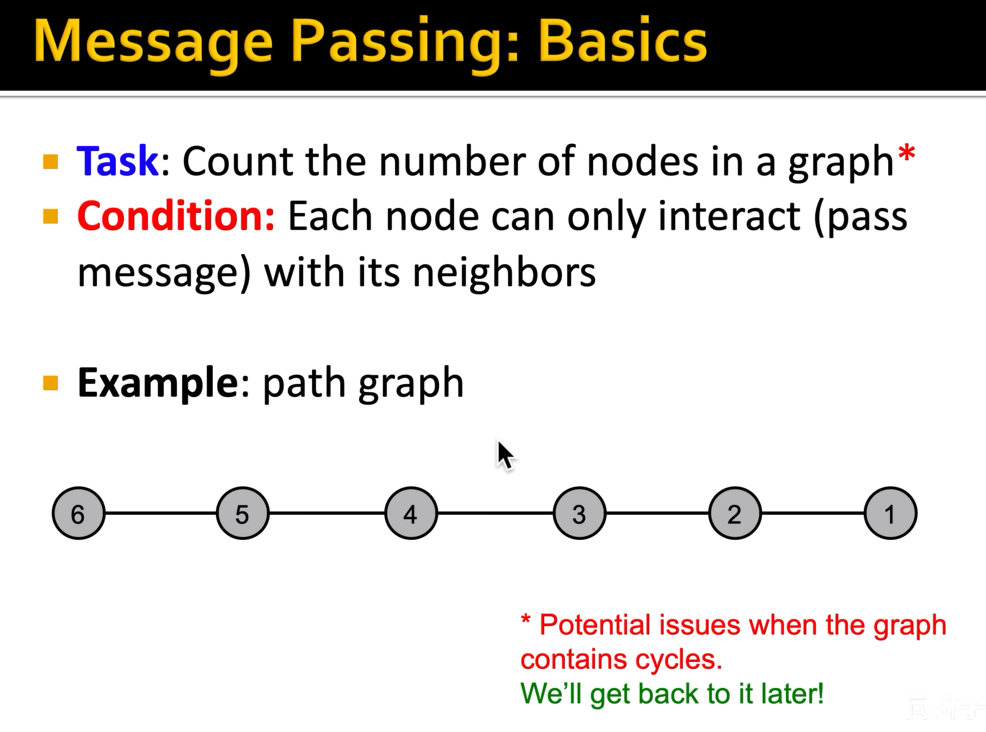

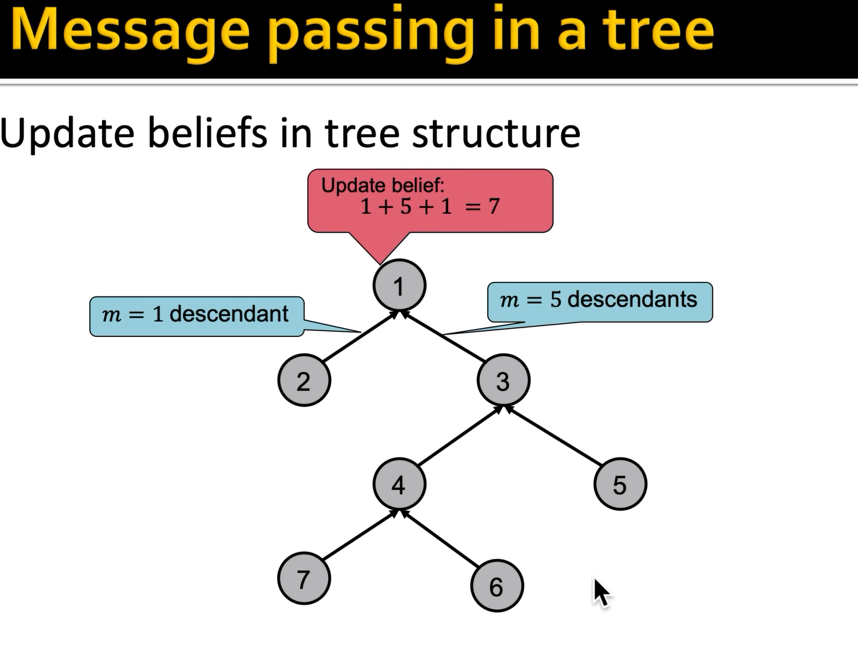

Loopy Belief Propagation

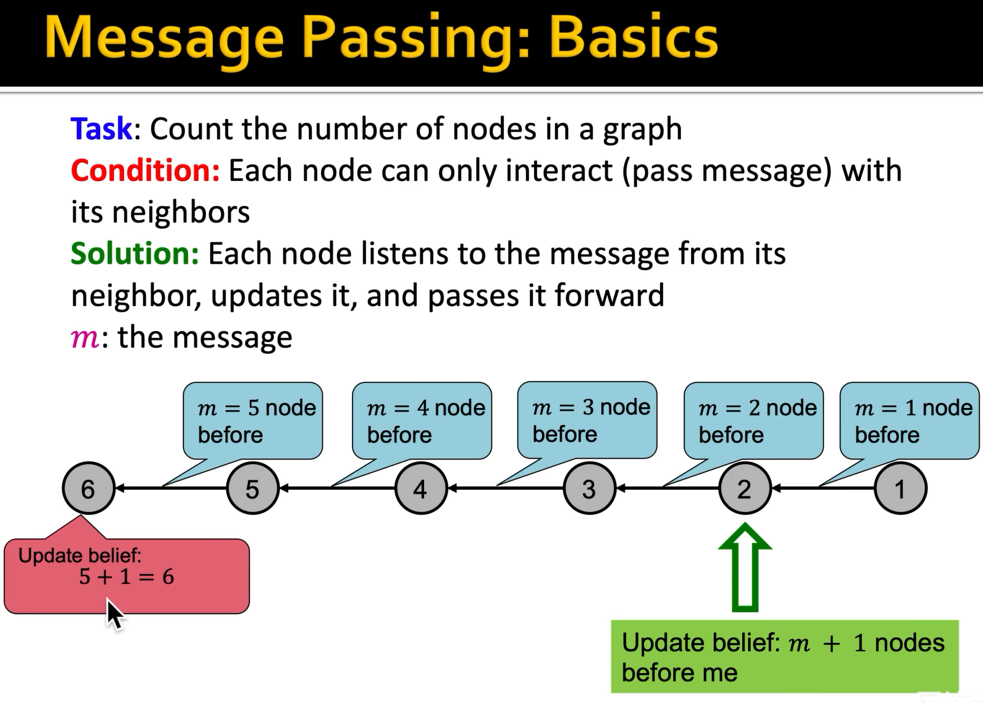

这是一种消息传递方法。

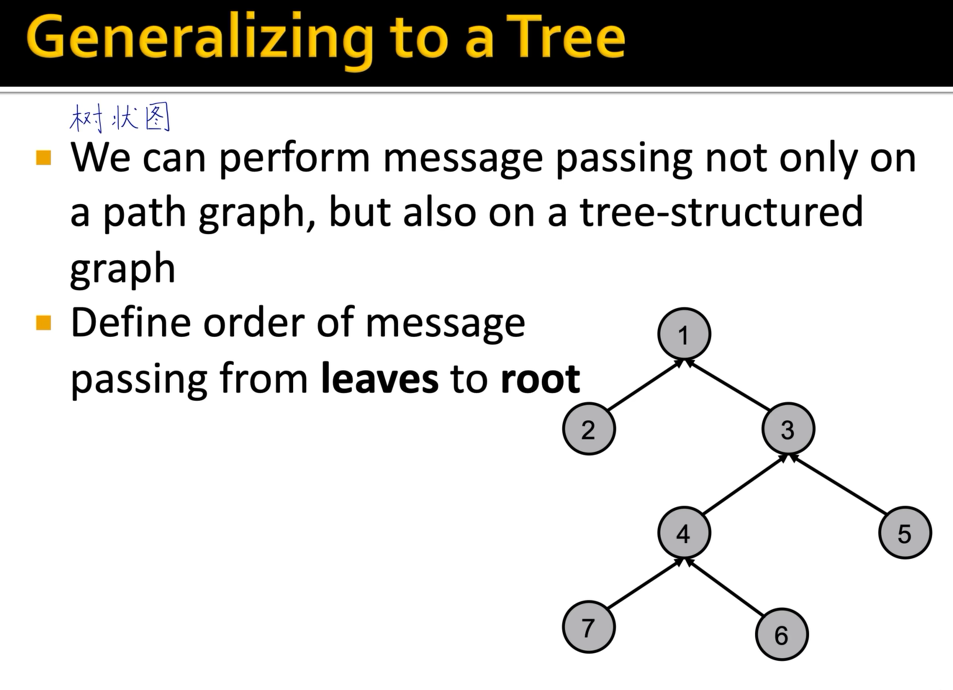

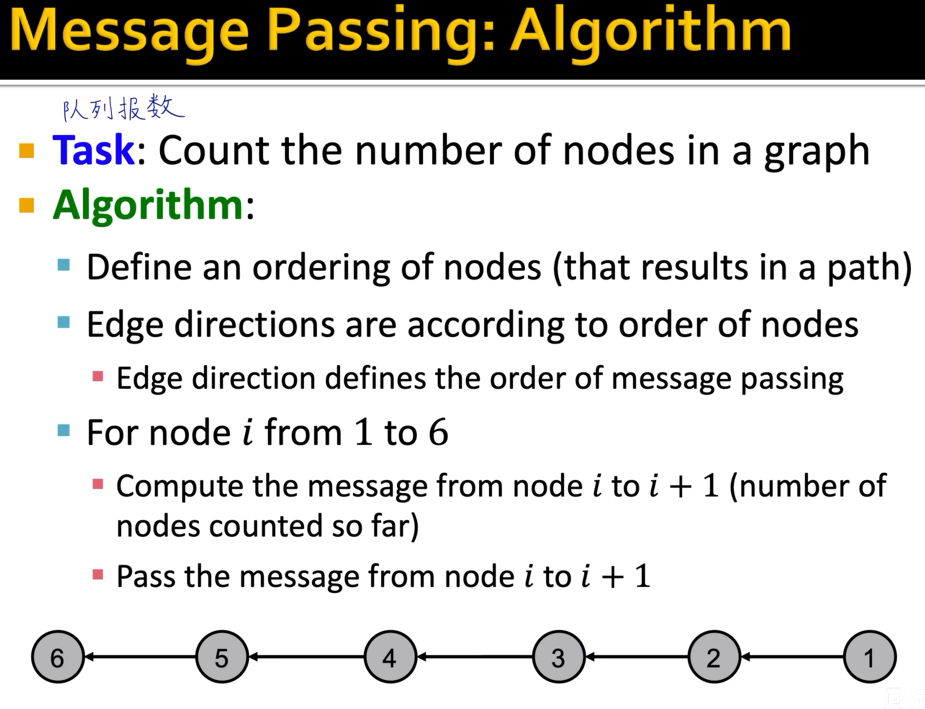

动态规划算法,下一时刻的状态仅取决于上一时刻。

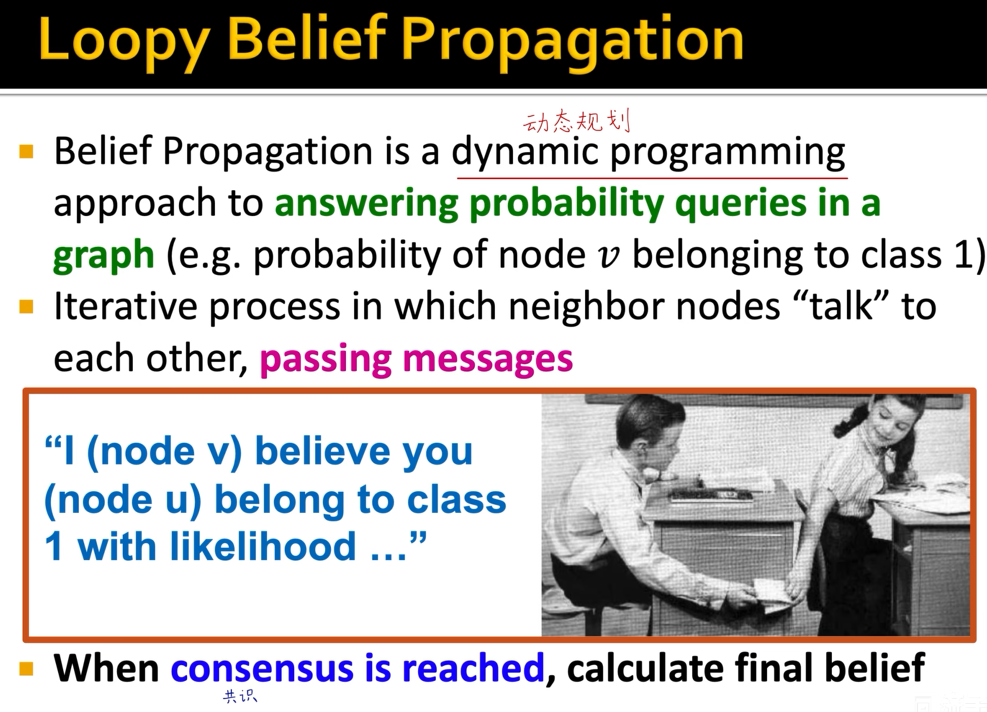

https://github.com/spiritysdx/images/blob/main/20231020/51.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/52.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/53.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/54.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/55.png?raw=true

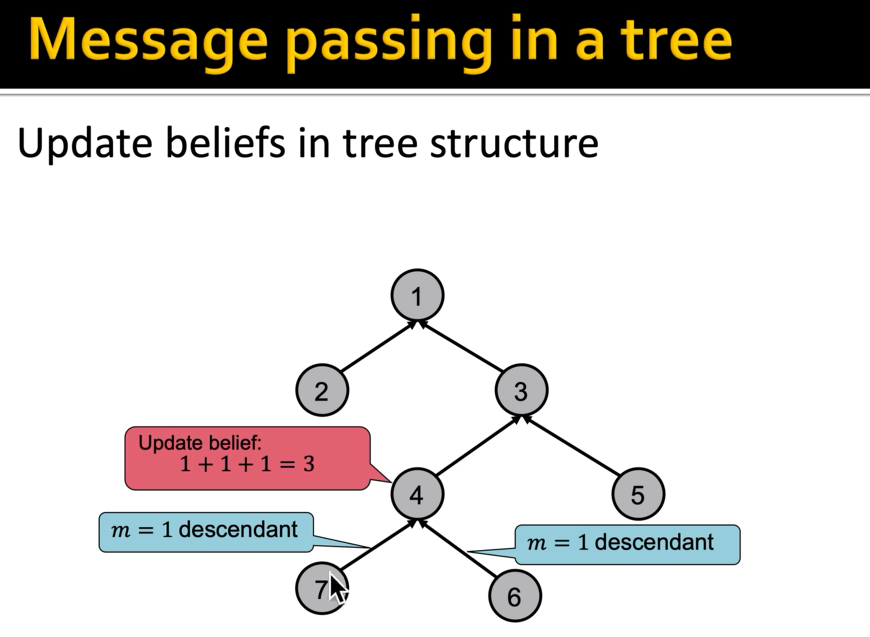

https://github.com/spiritysdx/images/blob/main/20231020/56.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/57.png?raw=true

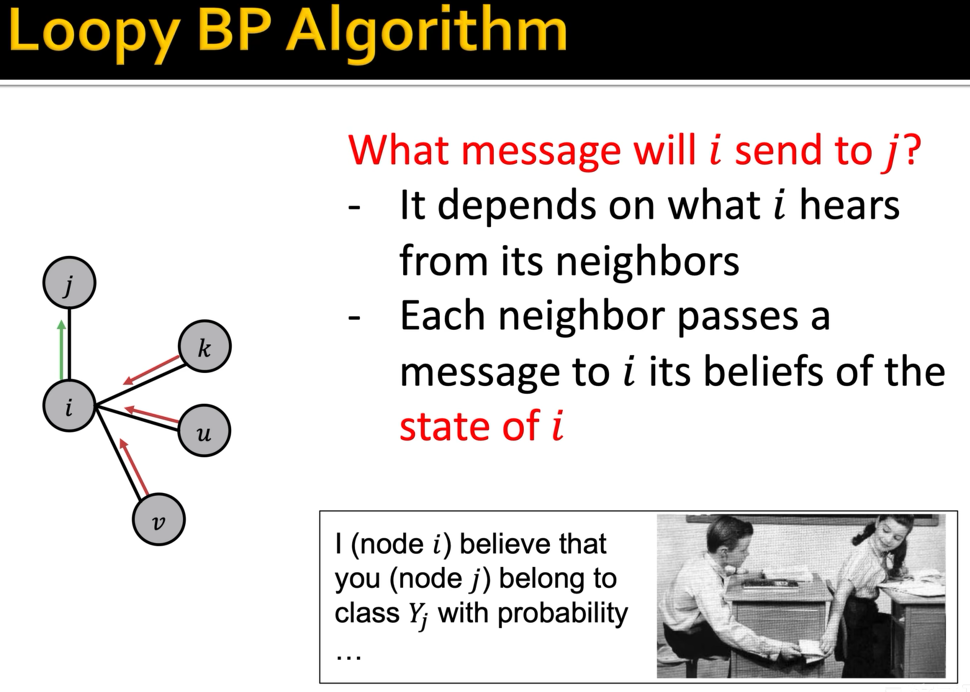

https://github.com/spiritysdx/images/blob/main/20231020/58.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/59.png?raw=true

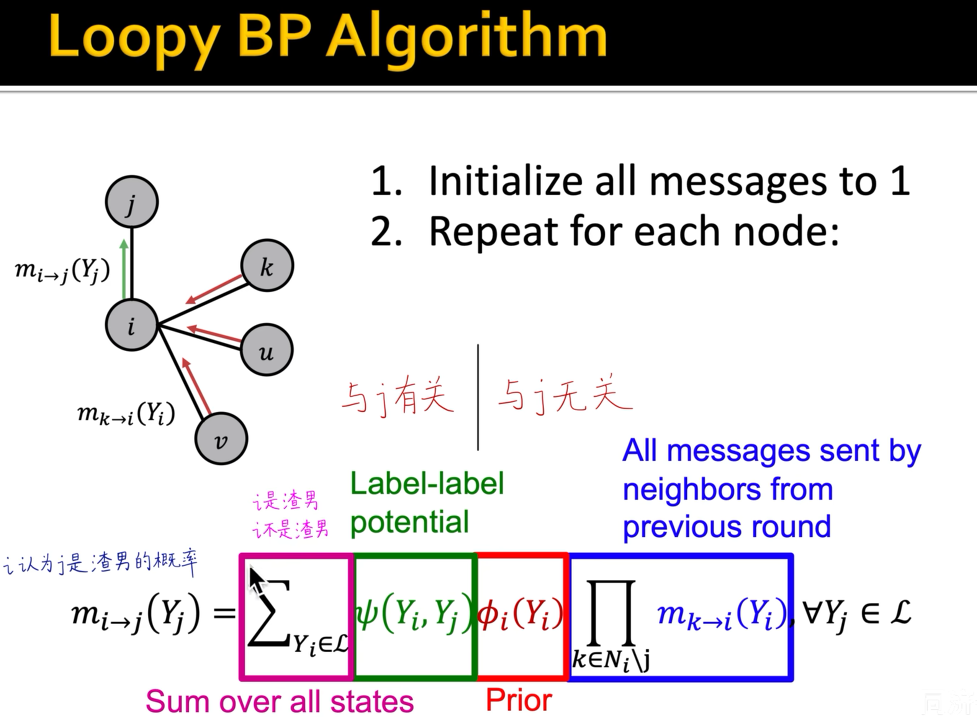

https://github.com/spiritysdx/images/blob/main/20231020/60.png?raw=true

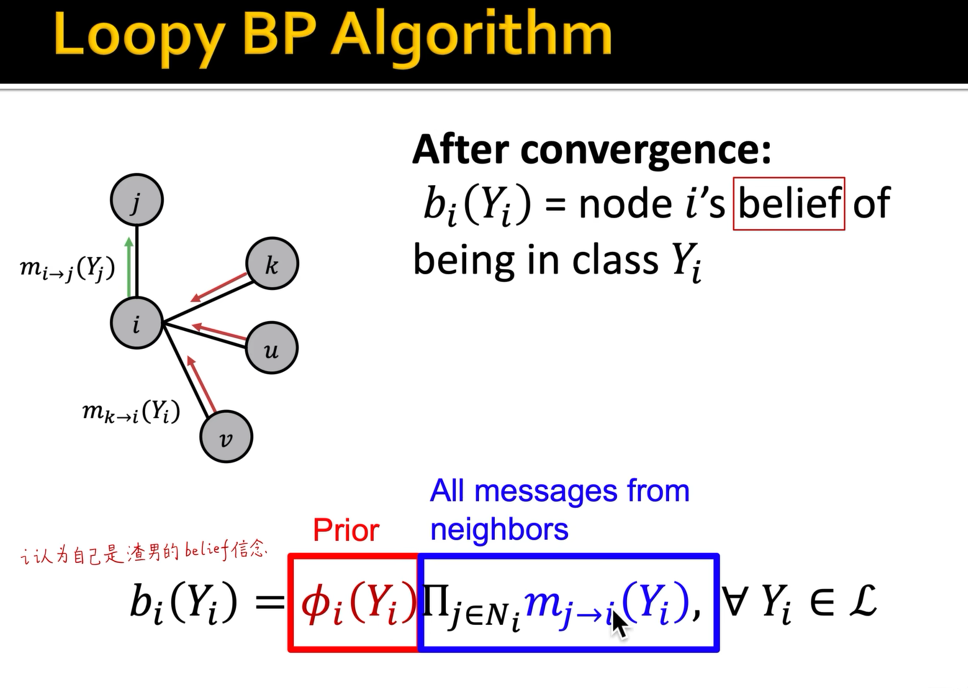

https://github.com/spiritysdx/images/blob/main/20231020/61.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/62.png?raw=true

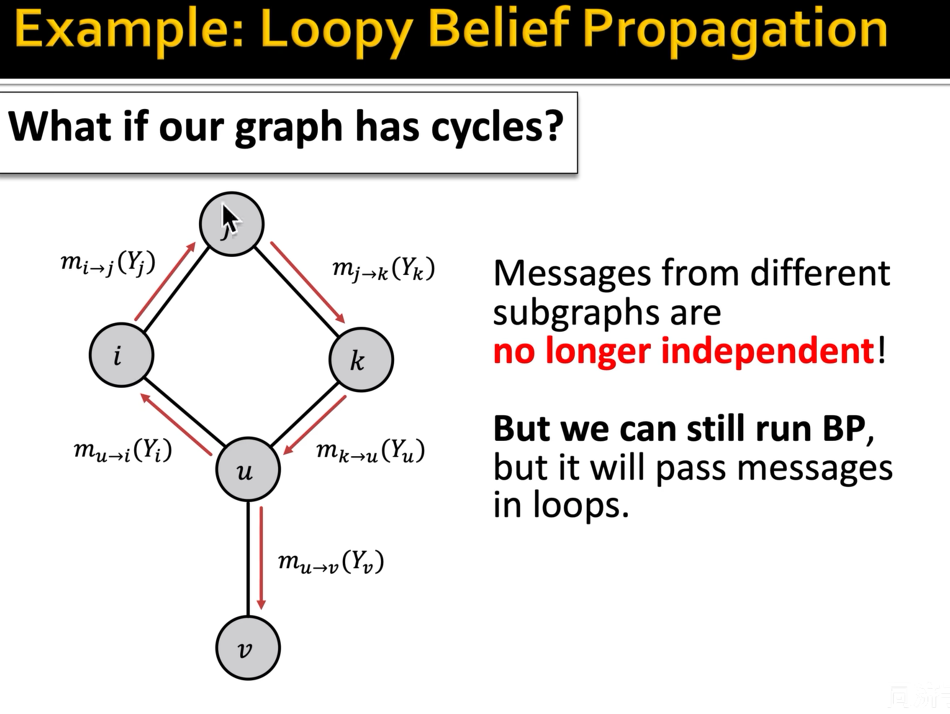

https://github.com/spiritysdx/images/blob/main/20231020/63.png?raw=true

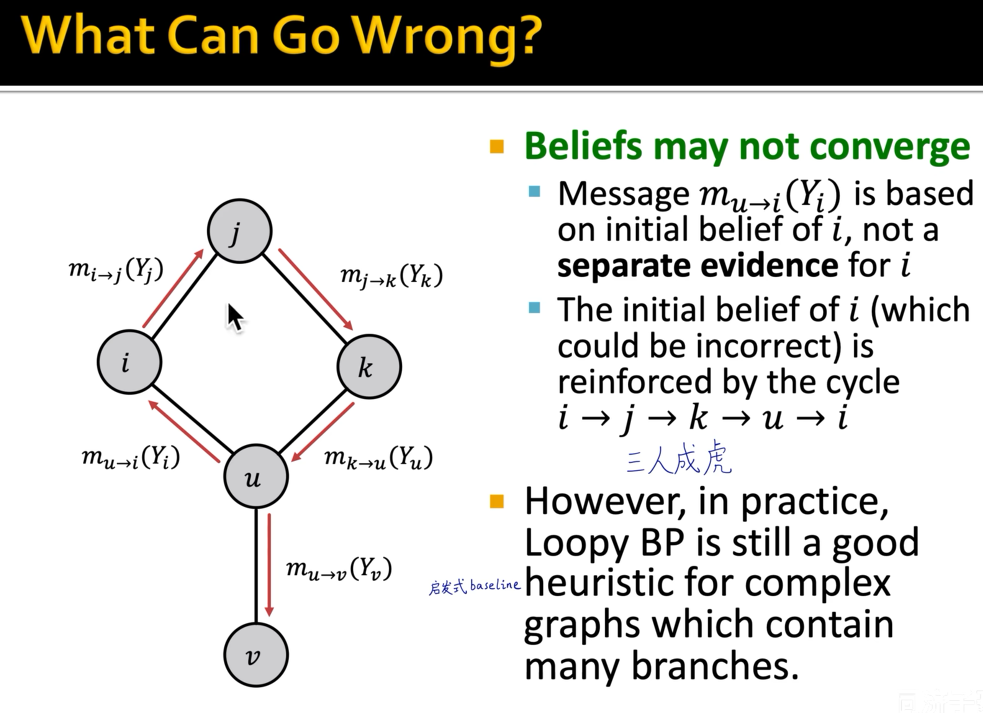

https://github.com/spiritysdx/images/blob/main/20231020/64.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/65.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/66.png?raw=true

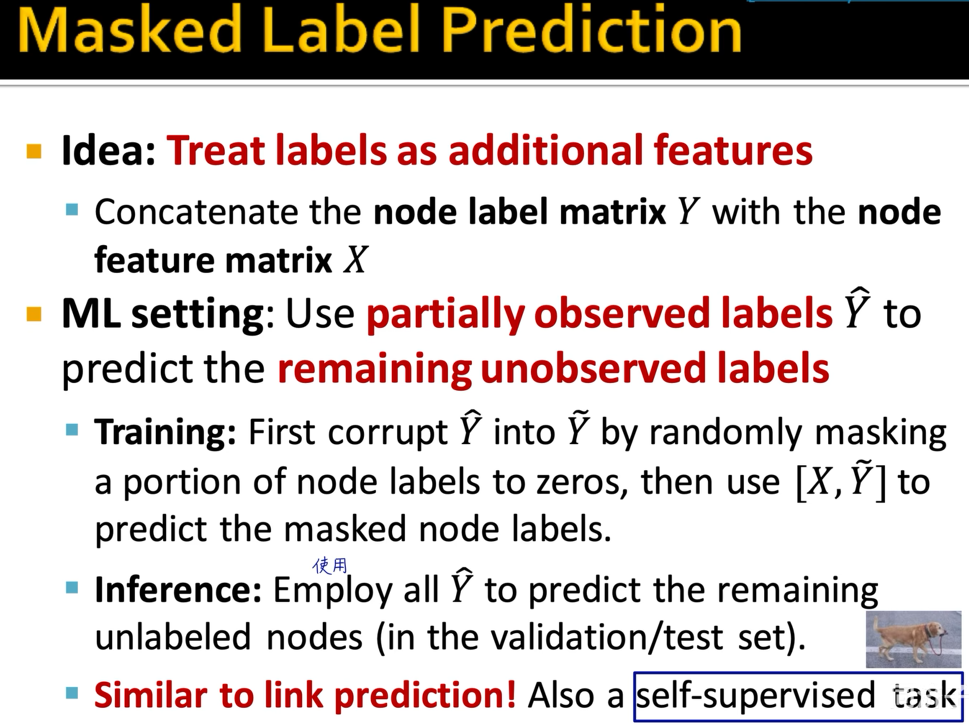

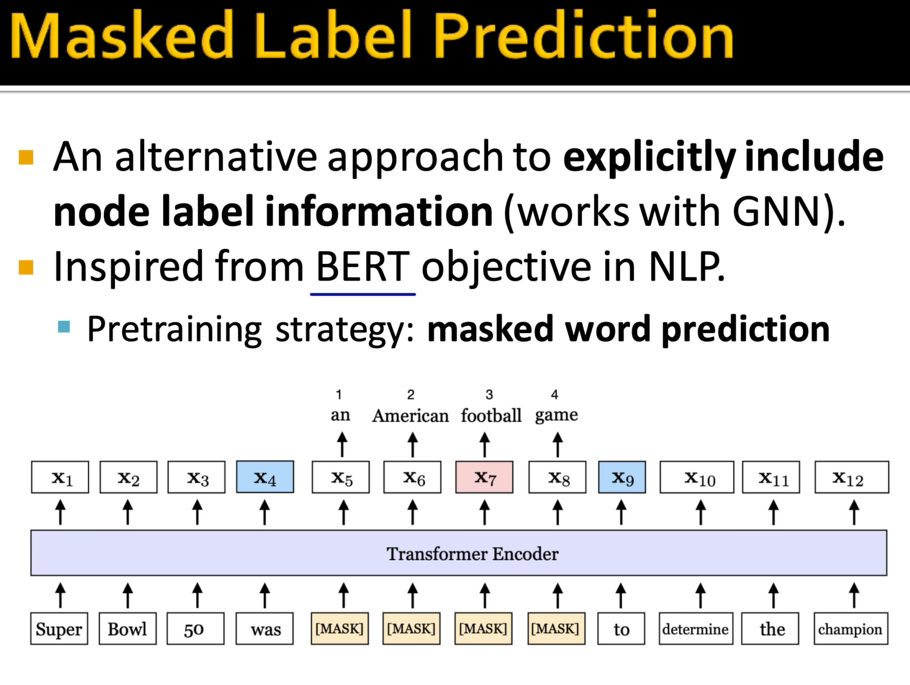

Masked Label Prediction

这是一种自监督方法。

https://github.com/spiritysdx/images/blob/main/20231020/67.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/68.png?raw=true

已有的信息随机的抹除,然后用剩下的已有信息去预测,自监督地学习。

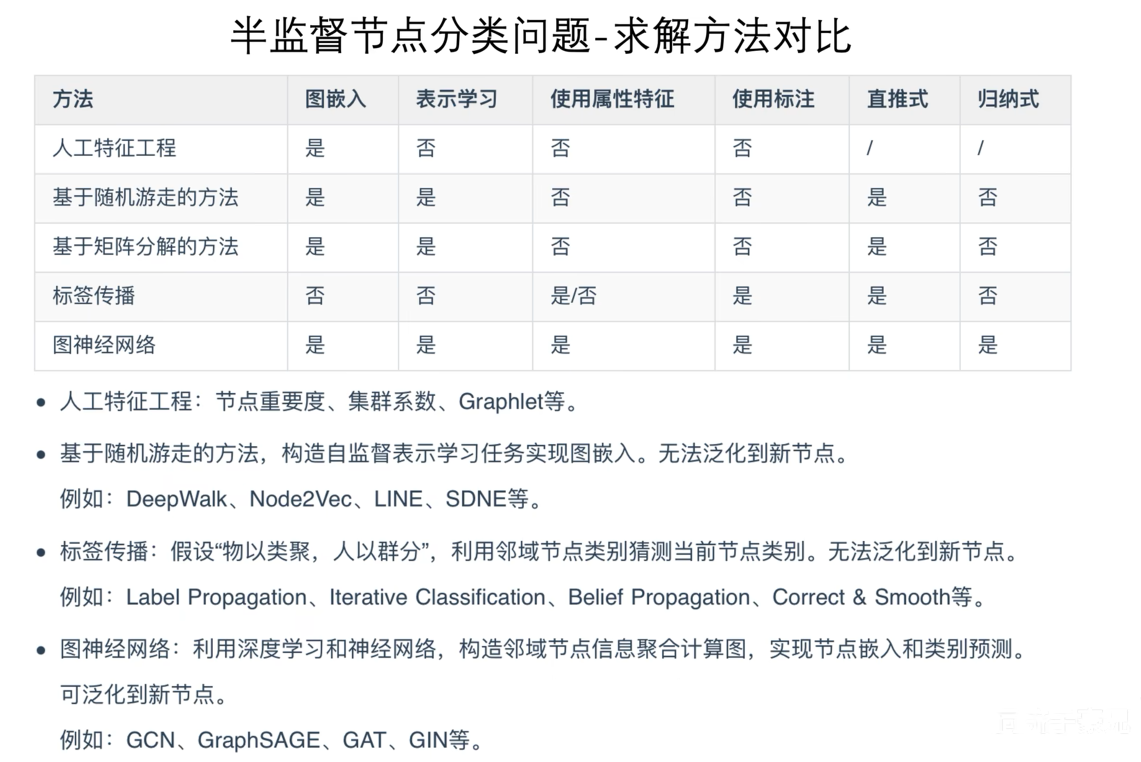

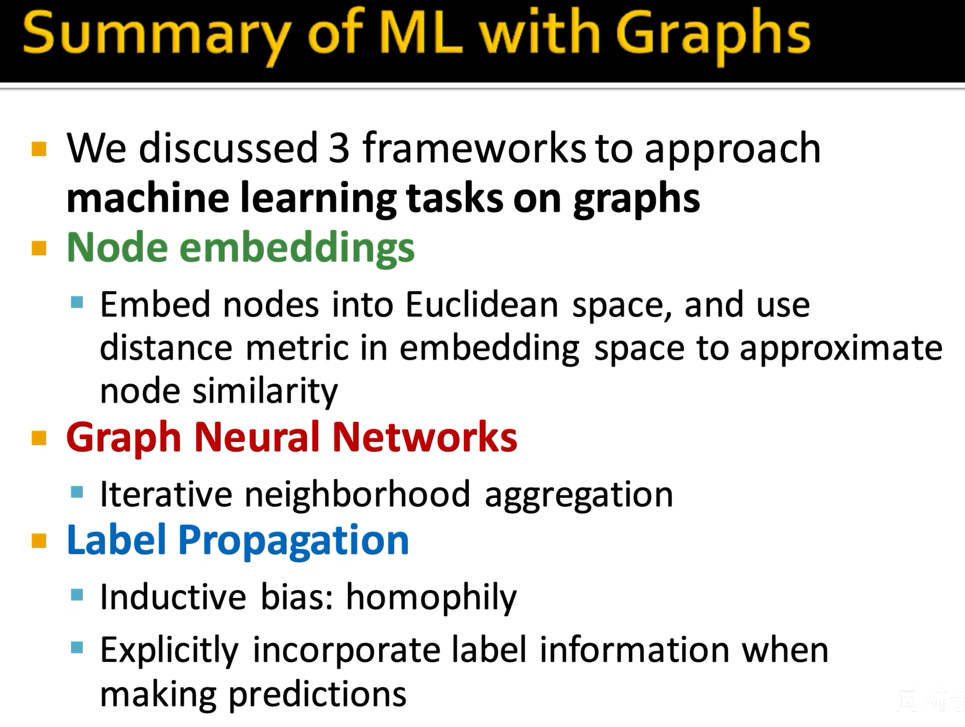

总结

都是用来解决半监督节点分类问题的。

https://github.com/spiritysdx/images/blob/main/20231020/69.png?raw=true

https://github.com/spiritysdx/images/blob/main/20231020/70.png?raw=true

直推式(也称为演绎推理)是从特定的前提或事实中推导出具体的结论,而归纳式(也称为归纳推理)则是从一般的观察或模式中推断出普遍的结论。可以这么说,直推是由特殊到一般,而归纳是由一般到特殊。

归纳式在有新的节点出现时可以很好的使用原模型,不用重新训练,而直推式需要重新训练。
